Embedded Microphone Base Unit
Product Features
• Exquisite and elegant embedded structure, ergonomic and modern.
• Embedded microphone socket compatible with button-type interface microphones and gooseneck microphones to form a complete conference microphone setup.
• Touch-sensitive microphone on/off button.
• Professional 3-core Canon female connector with XLR output.
• Supports 48V phantom power operation.
• Automatic microphone locking when inserted prevents accidental unplugging or noise; manual release is required for removal.
• Anti-vibration rubber isolation ring and metal fixing ring (for gooseneck microphones) reduce vibration or impact noise from the mounting surface.
Technical Paremeters
Frequency Response: 40–20kHz
Mute Attenuation: <50 dB @1kHz/Pa
LED Display: Green for working; off for mute
Phantom Power Supply: 24–52V
Switch: Light touch control
Base Weight: 150g
Input Terminal: Professional 3-core XLR female connector (5-pin)
Output Terminals: 3-core XLR male connector
Standard Configuration: 1 pair anti-vibration rubber; 1 metal fixing ring
Hole Size: 35mm diameter

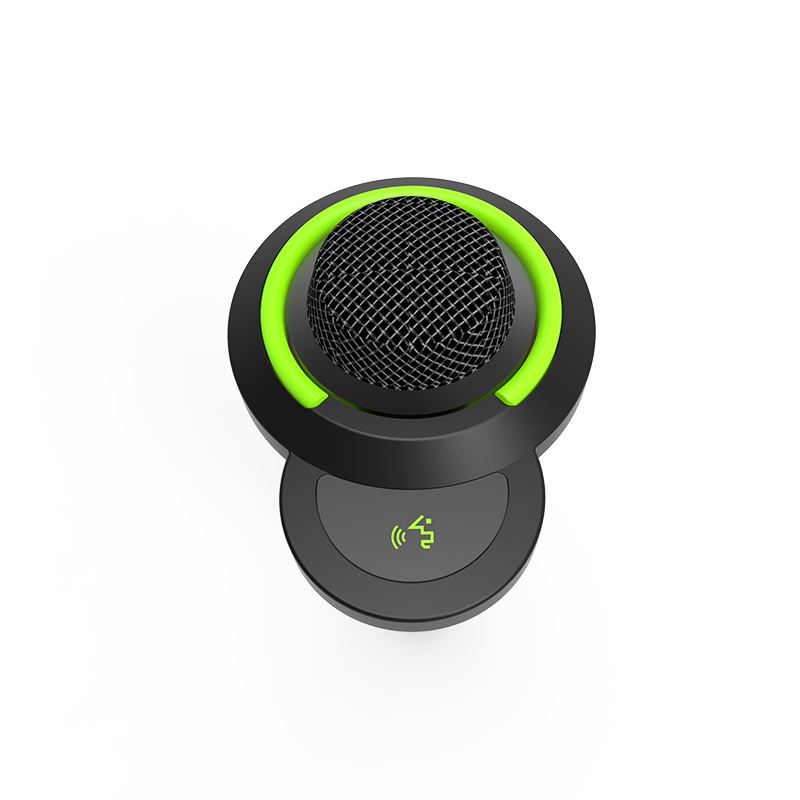

Embedded Microphone Pole
Product Features
• Exquisite embedded structure with high concealment.
• Supports five polar patterns: Omni-Directional, Cardioid, Super Cardioid, Wide Cardioid, Figure-of-Eight.
• All-metal shell, resistant to RF interference.
• Professional 5-core Canon female output.
• Supports 48V phantom power operation.
• Compatible with IT80A embedded microphone base.
• Anti-vibration rubber isolation ring reduces vibration or impact noise from the installation surface.
• Built-in windshield, no additional handling required.
Technical Paremeters
Microphone Type: Cardioid Condenser
Polar Patterns: Omni-Directional, Cardioid, Super Cardioid, Wide Cardioid, Figure-of-Eight
Power Consumption: 2W
Impedance: 120Ω
Frequency Response: 90Hz–17kHz
Maximum SPL: 120dB @1% T.H.D., 1kHz
Power Requirements: 24V / 48V, 4mA
Sensitivity: -32dBV (25mV) @1Pa
Pole Dimensions: 30 × 30 × 84 mm
Pole Weight: 62g
Advantages of Analog Microphones
1. Sound Performance
Natural & Authentic: Delivers warm, full, and detailed audio, closer to the original voice.
Wide Dynamic Range: Maintains clarity at both high sound pressure levels and low volumes.
2. Technical Features
Ultra-Low Latency: No digital processing, ensuring real-time performance.
Simple Circuitry: Strong resistance to interference and high operational stability.
3. Usability & Maintenance
Easy to Operate: Plug-and-play with broad compatibility, no complicated setup.
Low Maintenance: Straightforward circuitry, fewer failures, and lower repair costs.
4. Cost Advantage
Highly Affordable: More economical than most digital microphones.
5. Typical Application Scenarios
Conferences: Clear speech with real-time transmission.
Education & Training: Quick installation and user-friendly operation.
Live Performances: Natural sound with zero noticeable delay.
Commercial & Entertainment: Reliable and cost-effective for everyday use.
