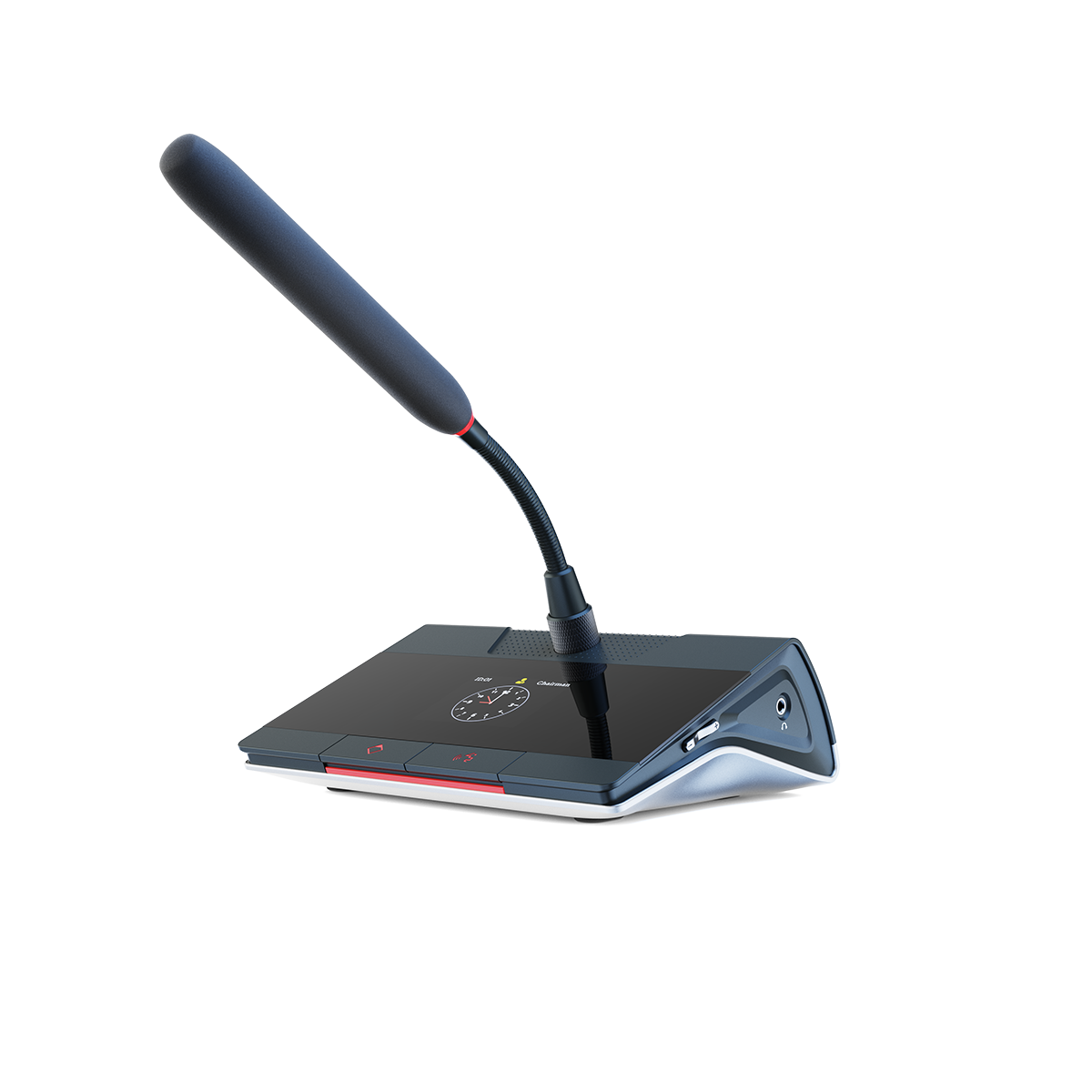

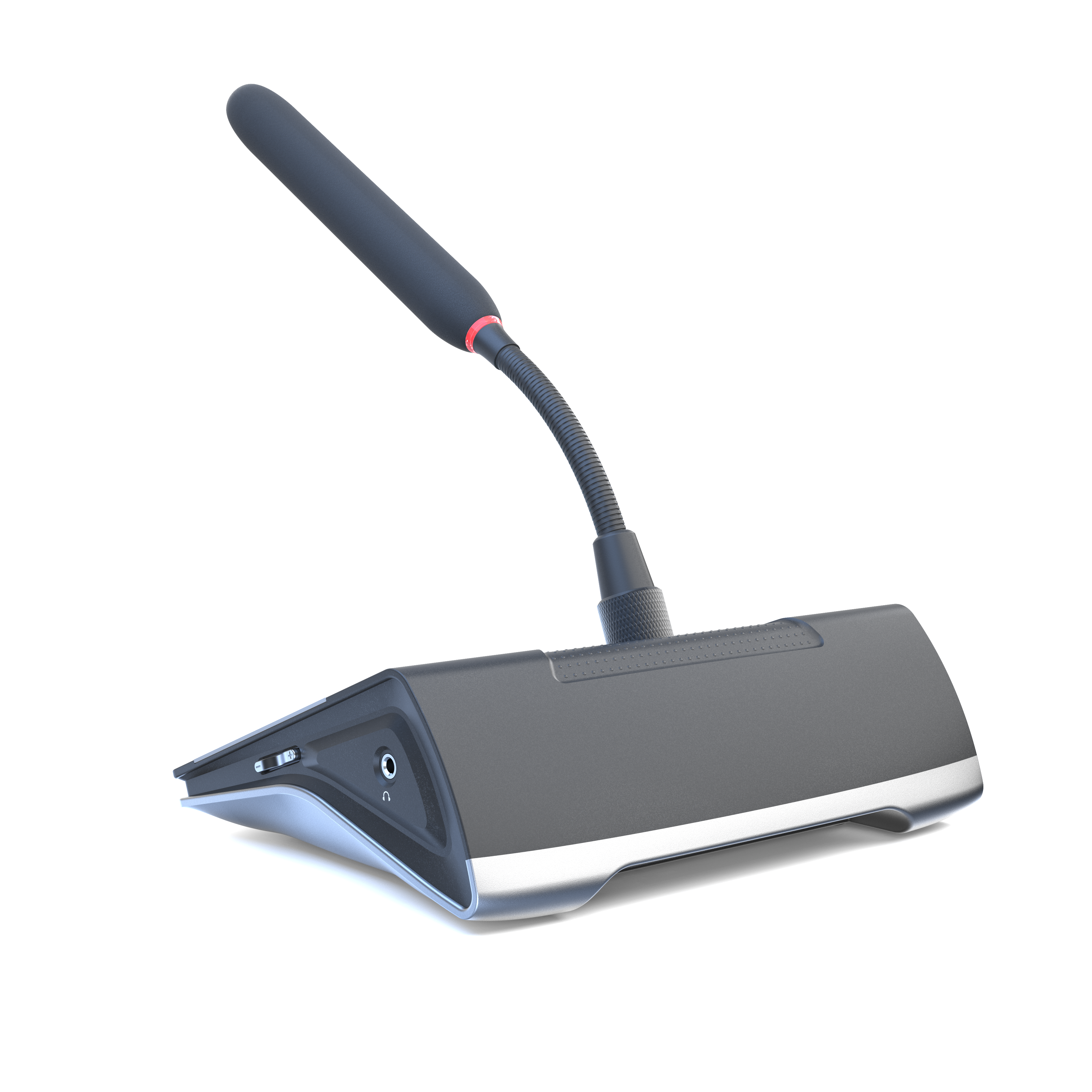

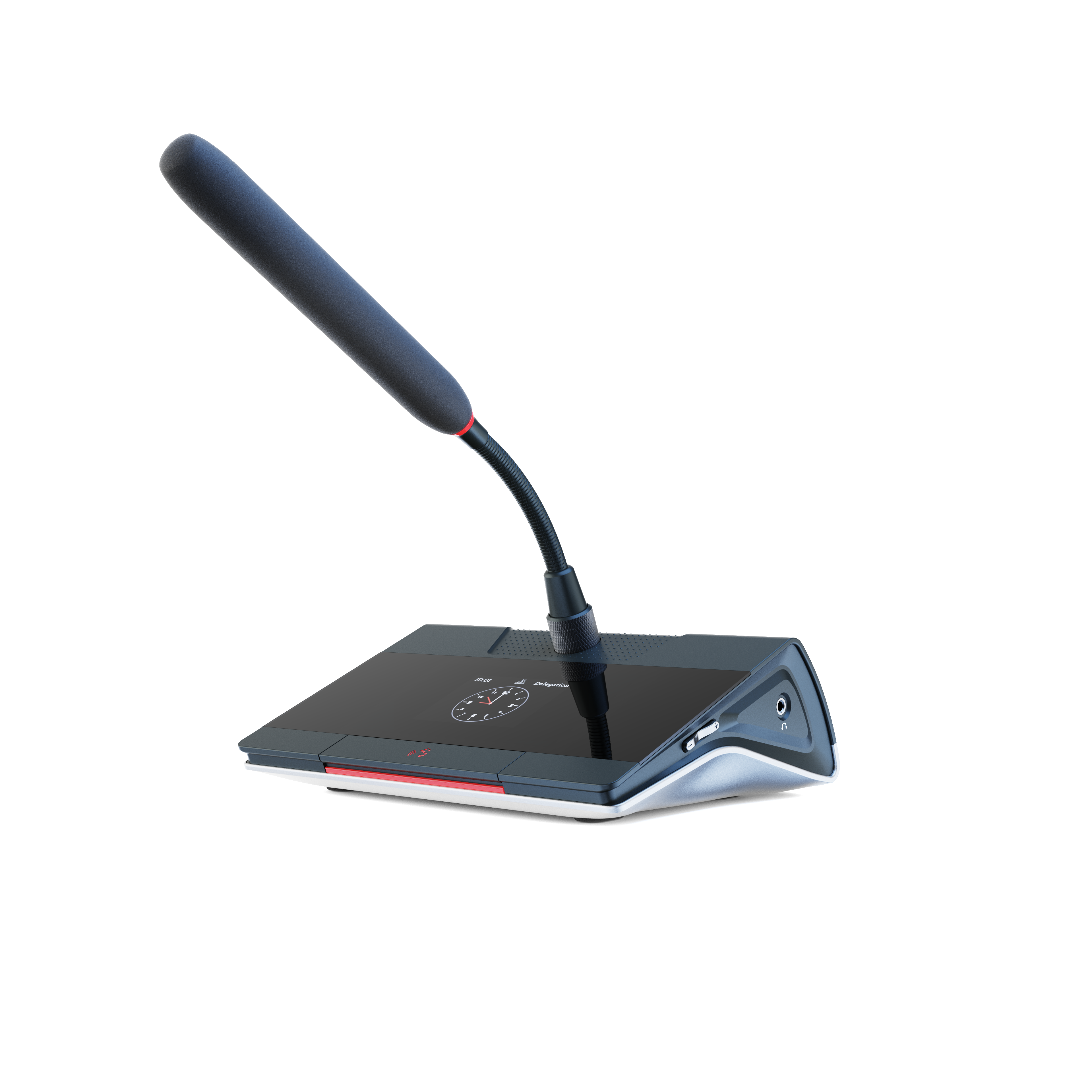

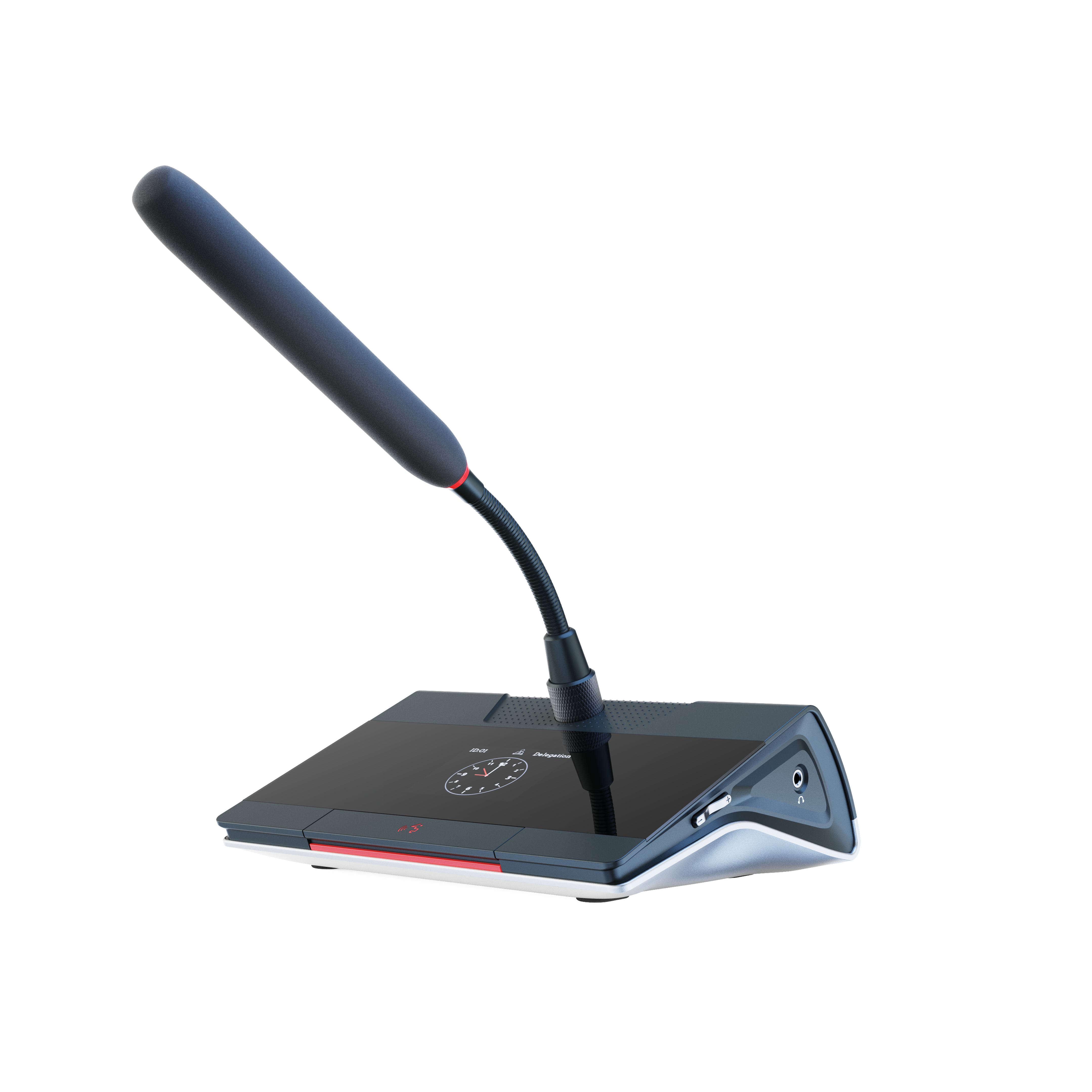

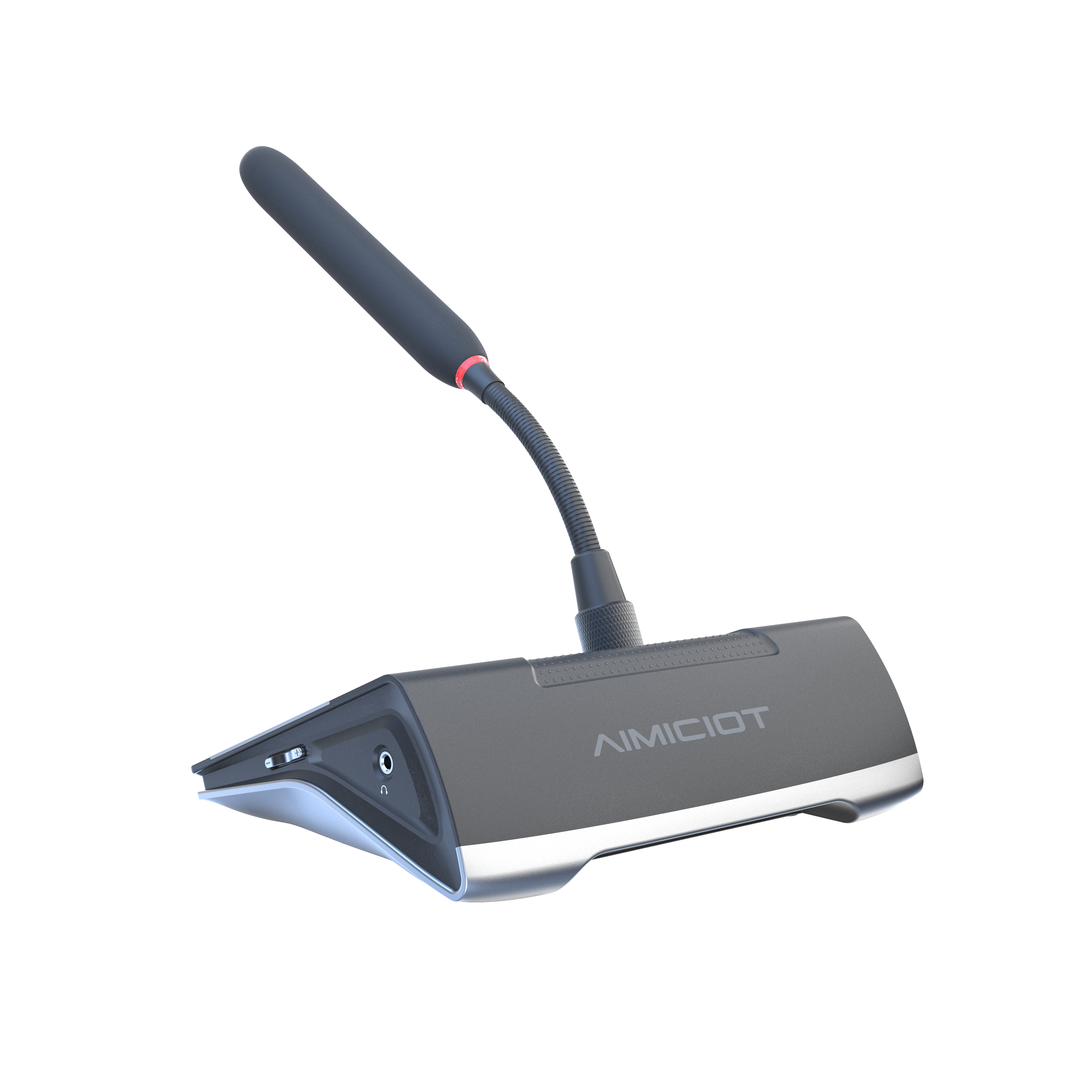

Digital Conference Shotgun Microphone With Display

    UN220C-G/UN220D-G

    Overview


    This Digital Conference Shotgun Microphone is designed for professional meeting applications, combining stylish appearance, ergonomic structure, and high-performance audio processing. With advanced digital audio technology, a built-in CPU, and dual backup options, it ensures stable and reliable operation in every important conference. The integrated Display Microphone function with a 2.4-inch TFT screen provides clear information display, offering an intelligent and user-friendly conference experience.


    Product features


    • Stylish and ergonomic design, making the Digital Conference Shotgun Microphone easy to operate.

    • Specially engineered electret condenser capsule ensures clear, bright sound with high sensitivity.

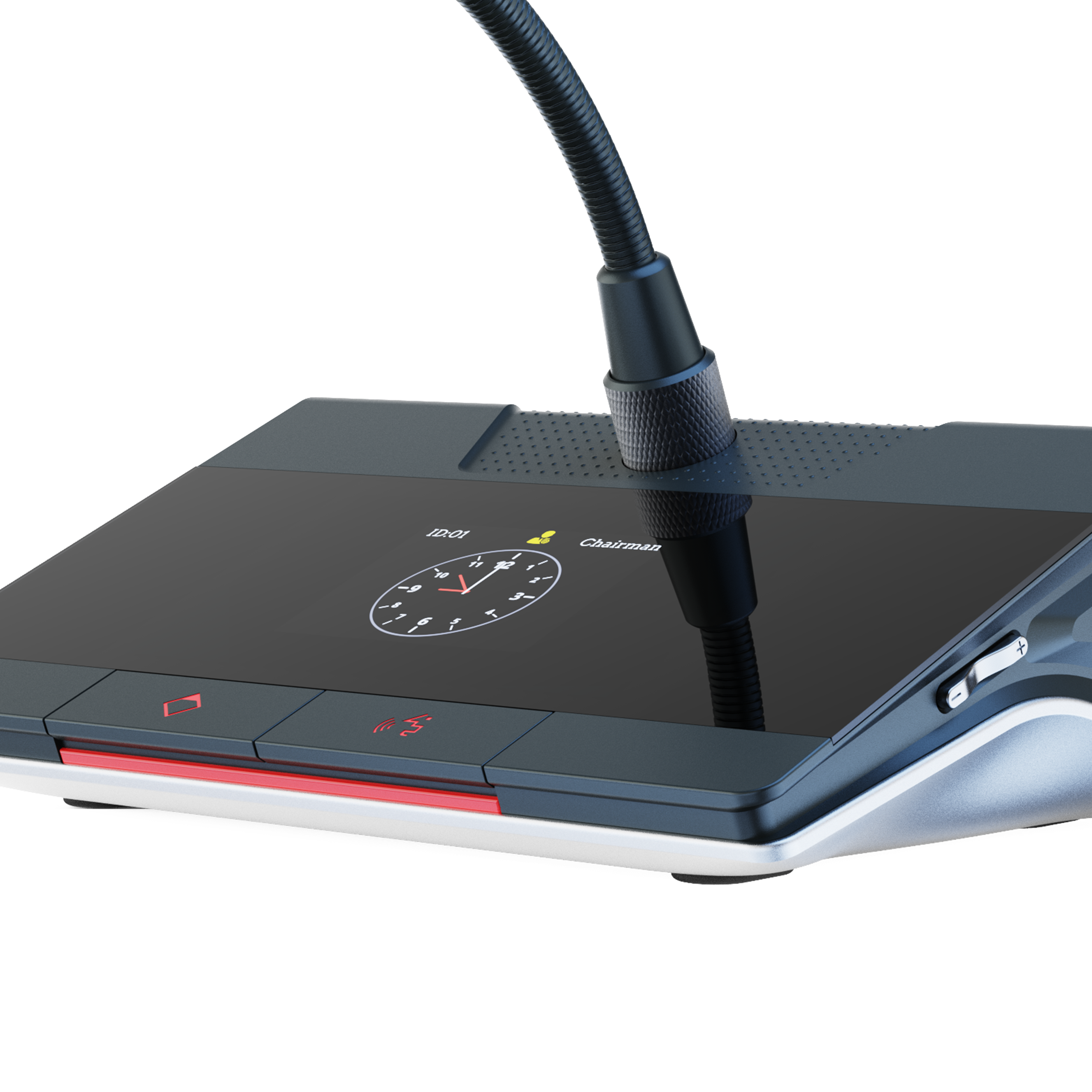

    • Elegant 2.4-inch TFT screen as a Display Microphone, showing speaker role (Chairman, Delegate, VIP), microphone ID, clock, volume, speech timer, bilingual settings, brightness adjustment, and unit information.

    • Full digital audio technology with a built-in high-performance CPU provides faster processing and better sound quality.

    • Optional analog-digital dual backup guarantees reliability, ensuring uninterrupted operation of the Digital Conference Shotgun Microphone during critical meetings.

    • Ring hand-in-hand connection technology ensures that failure of one microphone or cable does not affect other units, increasing overall system reliability.

    • Supports hot-plugging, allowing more Display Microphone units to be added flexibly without affecting ongoing meetings.

    • Chairman unit has full-priority control of meeting order with no connection restrictions, while delegate units can be configured as VIPs without mode limitation.

    • In Application Mode, the chairman can approve delegate requests with a single press.

    • Compatible with a camera tracking host for automatic tracking once presets are configured, enhancing conference intelligence.

    • Offers five speaking modes: Normal, FIFO, Free, Application, and Voice-activated, with adjustable sensitivity for smart control of the Digital Conference Shotgun     Microphone.

    • Two selectable microphone-on modes: toggle or press-and-hold.

    • Dual-color LED indicators: red for speaking status.

    • Each Display Microphone unit comes with a built-in 1.8m Cat6 cable, supporting hidden bottom wiring or rear wiring for cleaner installation.

    • Anti-mobile interference design, stable and durable connections.

    • Ø3.5mm stereo headphone jack for monitoring.

    • Each Digital Conference Shotgun Microphone unit has a unique serial number, and the system can manually assign IDs.


    Technical Parameters


    Power Supply:DC24V (host power supply)
    Connection:CAT6E Ethernet cable
    Power Consumption:2.5W
    Polar Patterns:cardioid
    Microphone Type:Condenser
    Distortion:<1%
    Frequency Response: 40Hz-20KHz
    Switching Method:Mechanical Switch
    Sensitivity: -32dBV
    Dimensions: Base: 180*142*59mm; Pole: 245mm
    Weight:910g


    UN220C-G/UN220D-G
