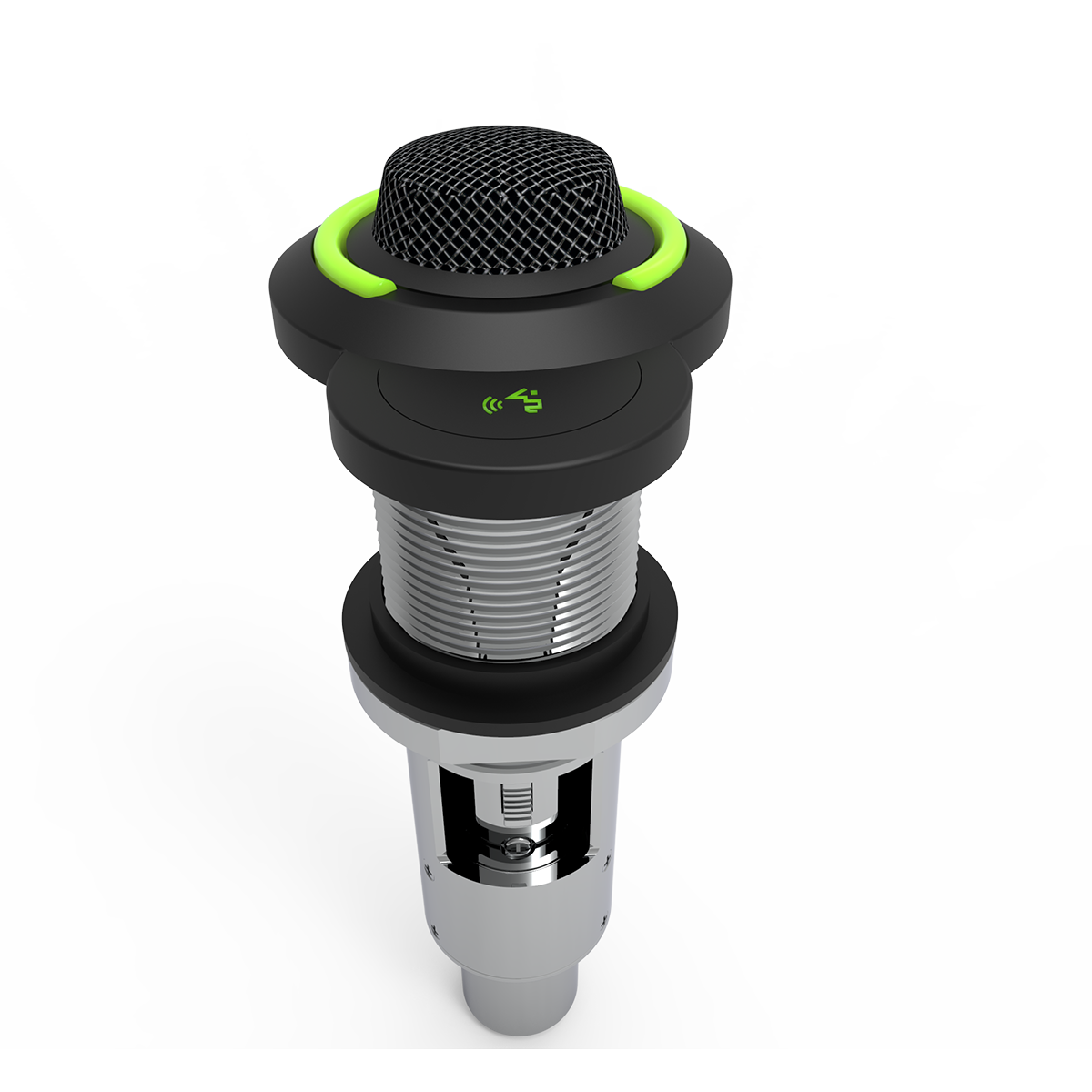

Flushmount Boundary Touch Switch Microphone

    IT90-220

    Overview


    This professional conference microphone integrates advanced digital technology with a sleek design, offering flexible installation options including the Flushmount Microphone and the Boundary Touch Switch Microphone. With variable polar patterns, automatic camera tracking, PoE support, and reliable hot-plugging functionality, it ensures high-quality audio and stable system performance. It is an ideal choice for modern conference rooms requiring efficiency, scalability, and professional-grade sound.


    Product features


    • Utilizes fully digital conferencing technology, compliant with the IEC60914 international standard.
    • Compact flushmount built-in design, easy to install, keeping the table surface clean and professional.
    • Special electret condenser dual-core design provides clear, bright, and high-sensitivity sound quality.
    • Variable microphone directivity technology allows adjustment of five polar patterns (Omni-directional, Wide cardioid, Cardioid, Super cardioid, Figure 8) for optimal pickup in different environments.
    • With the control box, the unit can be set as a chairman or delegate microphone.
    • Built-in high-performance CPU with digital audio technology ensures faster processing speed and improved sound quality.
    • Ring hand-in-hand connection technology ensures that the failure of one unit will not affect the others, enhancing reliability.
    • Supports hot-plugging, enabling microphones to be added at any time without powering off the system.
    • Chairman unit includes priority control, with the ability to turn off all delegate microphones when needed.
    • Two microphone options are available: Flushmount Microphone and Boundary Touch Switch Microphone, catering to different installation needs.
    • Works with the camera tracking host for automatic camera switching using preset positions.
    • Offers four speaking modes: Normal, FIFO, Free, and Apply.
    • Dual-color LED indicator (red for active speaking).
    • Check-in function, allowing the host computer to initiate and display attendance.
    • Equipped with a 2-meter shielded RJ45 Cat6 cable.
    • Anti-cell phone interference microphone core ensures stability and durability.
    • Independent microphone gain adjustment available via unit or PC software for smooth speaker volume balance.
    • Each conference unit carries a unique serial number, with manual ID assignment available.


    Technical Parameters


    Power Supply:DC24V (host power supply)
    Connection:Network cable
    Power Consumption:2W
    Polar Patterns:Omnidirectional, pancentric, cardioid, hypercardioid, figure-of-eight
    Impedance:120Ω
    Distortion:<1%
    Frequency Response: 90Hz-17KHz
    SwitchLight-touch control


    IT90-220
