Overview
Product features
• Exquisite Design: Minimalist structure with modern style and ergonomic compliance
• Network Audio Support: Utilizes mainstream network audio protocols; connects via network cables to switches for audio transmission and signal interconnection
• POE Power Supply: Powered by Ethernet (IEEE802.3af, IEEE802.3at standards)
• Customizable Backup: Simulated backup option for enhanced system stability
• Anti-Interference: Effective resistance to RF and mobile phone interference
• Noise Reduction: Base equipped with damping rubber to minimize external vibration noise
Technical Parameters
Frequency Response: 90Hz-18kHz
Local Noise: 16 dB (A-weighted)
Dynamic Range: 108dB (1kHz at highest sound pressure)
Max Sound Pressure Level: 130dB
Microphone Sensitivity: -32dBV (25mA)
Connection: RJ45/1m cable
Power: POE switch (IEEE802.3af, IEEE802.3at)
Mode Selection: 6 customizable options (including voice activation and remote control)
Sampling Rate: 48K
Max Power Consumption: 2W
Polar Pattern: Cardioid

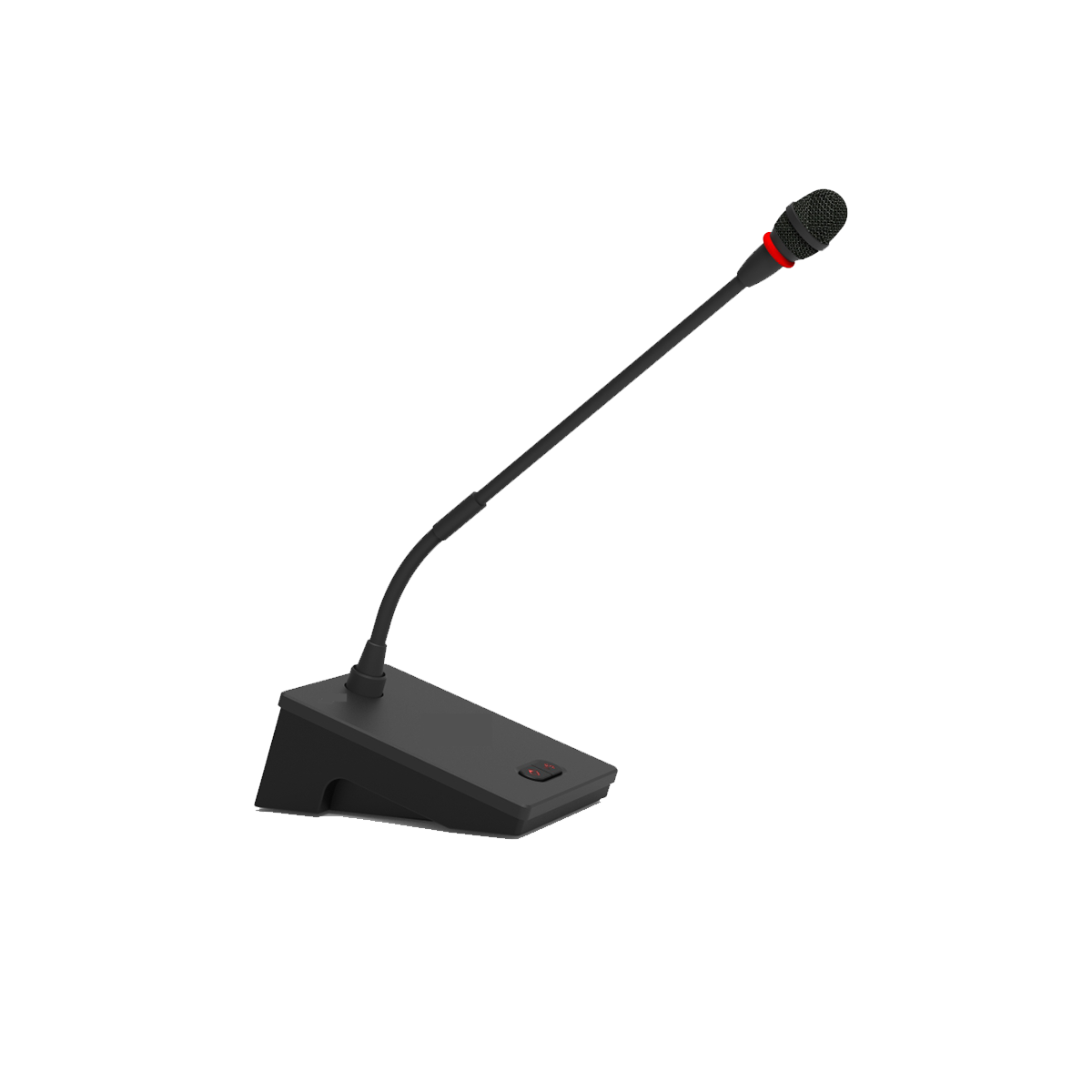

Type: Professional conference audio dante microphone
Dimensions: Pole 380mm; Base 138*98*54mm
Net Weight: 900g
Technical Advantages: Professional Network Audio Solution
Our professional conference audio dante microphone integrate the leading Dante networking technology and are compatible with the AES67 standard, delivering unparalleled flexibility, audio quality, and reliability to meet the demands of future-proof professional audio applications.
Simplified Cabling, Reduced Cost
Multi-Purpose Single Cable: A single standard Ethernet cable carries multi-channel lossless digital audio, power (PoE), and control data simultaneously.
Streamlined Infrastructure: Eliminate the complexity of bulky multi-core analog cables by leveraging existing Ethernet networks, significantly reducing installation costs and system complexity.
Exceptional Audio Quality, Lossless Transmission
Pristine Fidelity: End-to-end digital transmission from the microphone to the interface or mixer completely avoids noise and signal degradation associated with long-distance analog cabling.
High-Resolution Support: Fully supports high-resolution audio formats up to 24-bit/96kHz and beyond, ensuring broadcast and studio-grade sound quality.
Unmatched System Scalability and Flexibility
Easy Expansion: A standard Gigabit network can carry hundreds of synchronized audio channels effortlessly. Adding new microphones or audio endpoints becomes as simple as connecting a network device.
Flexible Routing: Dante's "any-to-any" routing philosophy allows you to intuitively route audio from any dante microphone to any one or multiple destinations in the system via software, eliminating the need for physical patching.
Robust Interoperability and Future-Proofing
AES67 Compatibility: As an industry-standard interoperability protocol for dante, AES67 ensures our audio dante microphones not only work seamlessly within the dante ecosystem but also interoperate with other AES67-compliant systems.
Future-Proof Investment: Investing in open-standards-based technology protects your investment and ensures your system remains adaptable to future professional conference audio dante technological advancements.
Precision Synchronization and Reliability
Sample-Accurate Clocking: Utilizes IEEE 1588 Precision Time Protocol for sample-accurate synchronization across all devices on the network, preventing jitter and latency issues.
Professional Redundancy: Features like Dante Domain Manager and redundant network support enable automatic failover to a backup network path, ensuring maximum uptime for mission-critical applications such as live broadcasting.
