Overview
The wireless conference system incorporates an advanced Wireless Control System, which eliminates tedious wiring for quick and easy installation and user-friendly operation. It is particularly suitable for renovation projects, mobile conferences, temporary equipment expansions, and scenarios where wiring is impractical.

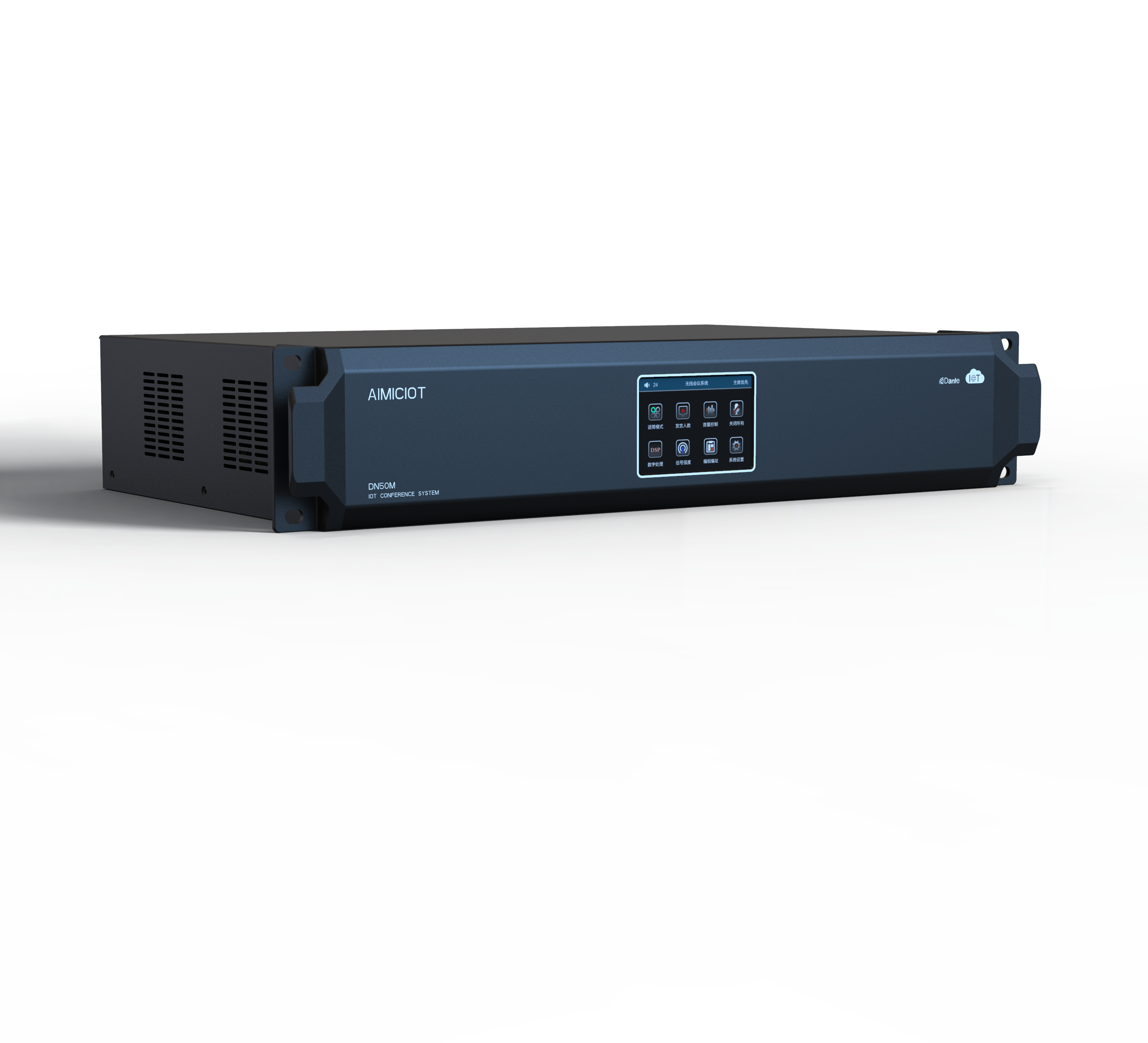

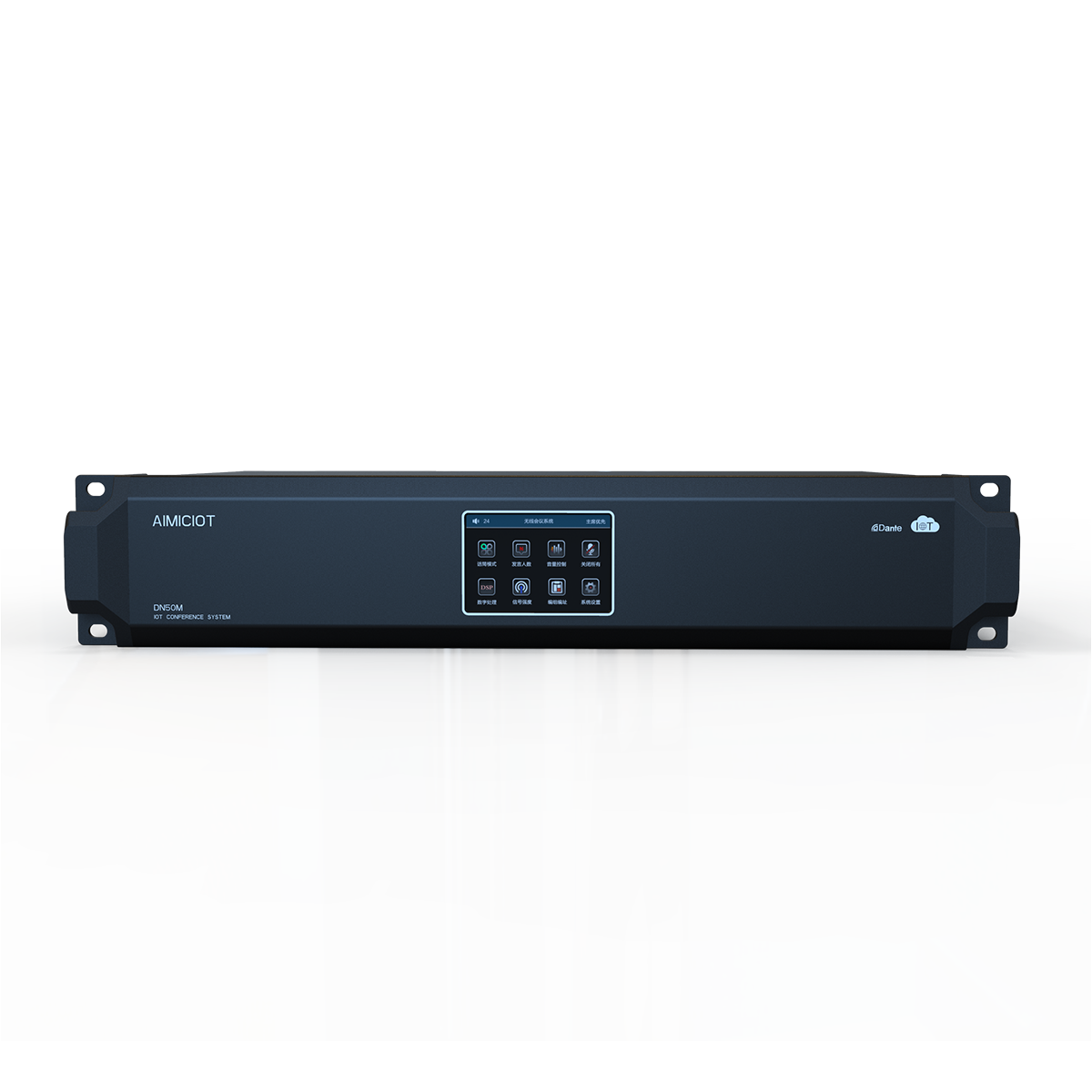

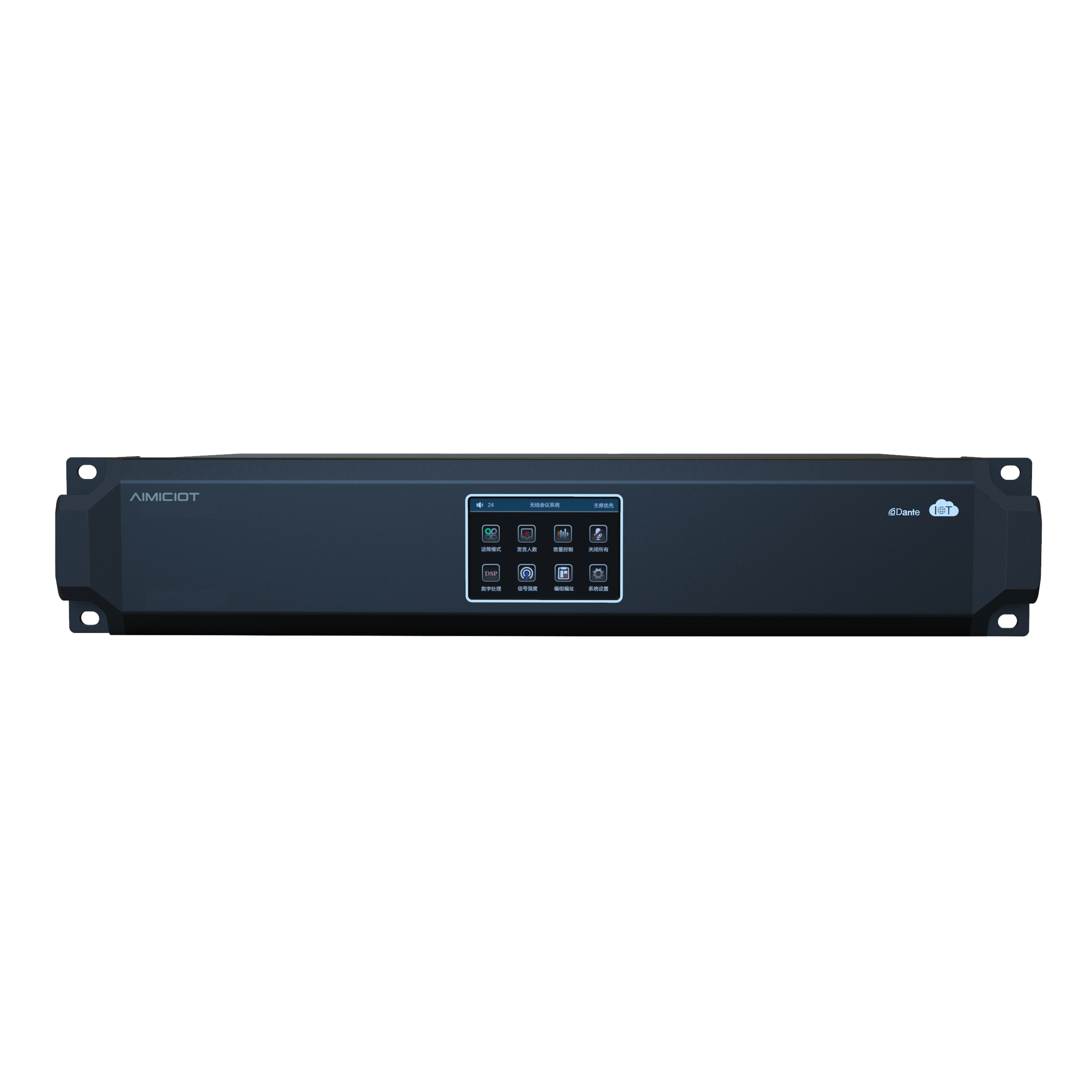

At the heart of the system is a sophisticated Conference Control Unit designed with digital-analog fusion technology, enabling camera tracking functionality and embedded DSP audio processing. This unit is managed via a sleek 4-inch touch screen, making operation intuitive and convenient. It also features an AOIP network audio transmission module that supports mainstream network audio protocols, ensuring seamless audio signal interoperability.
Product features
● Utilizing wireless RF technology to transmit audio and control signals, the system delivers high-fidelity sound without compression—clear, transparent, and stable.

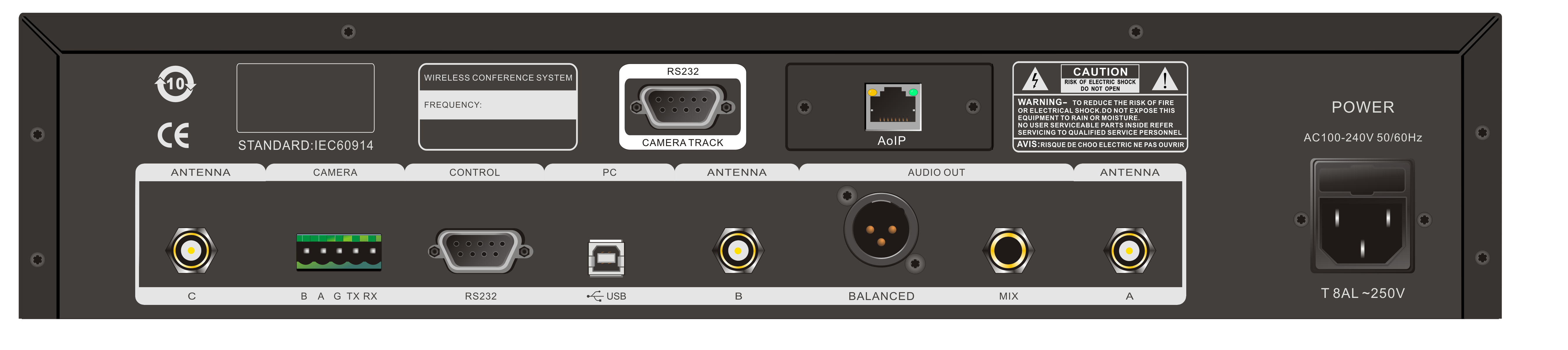

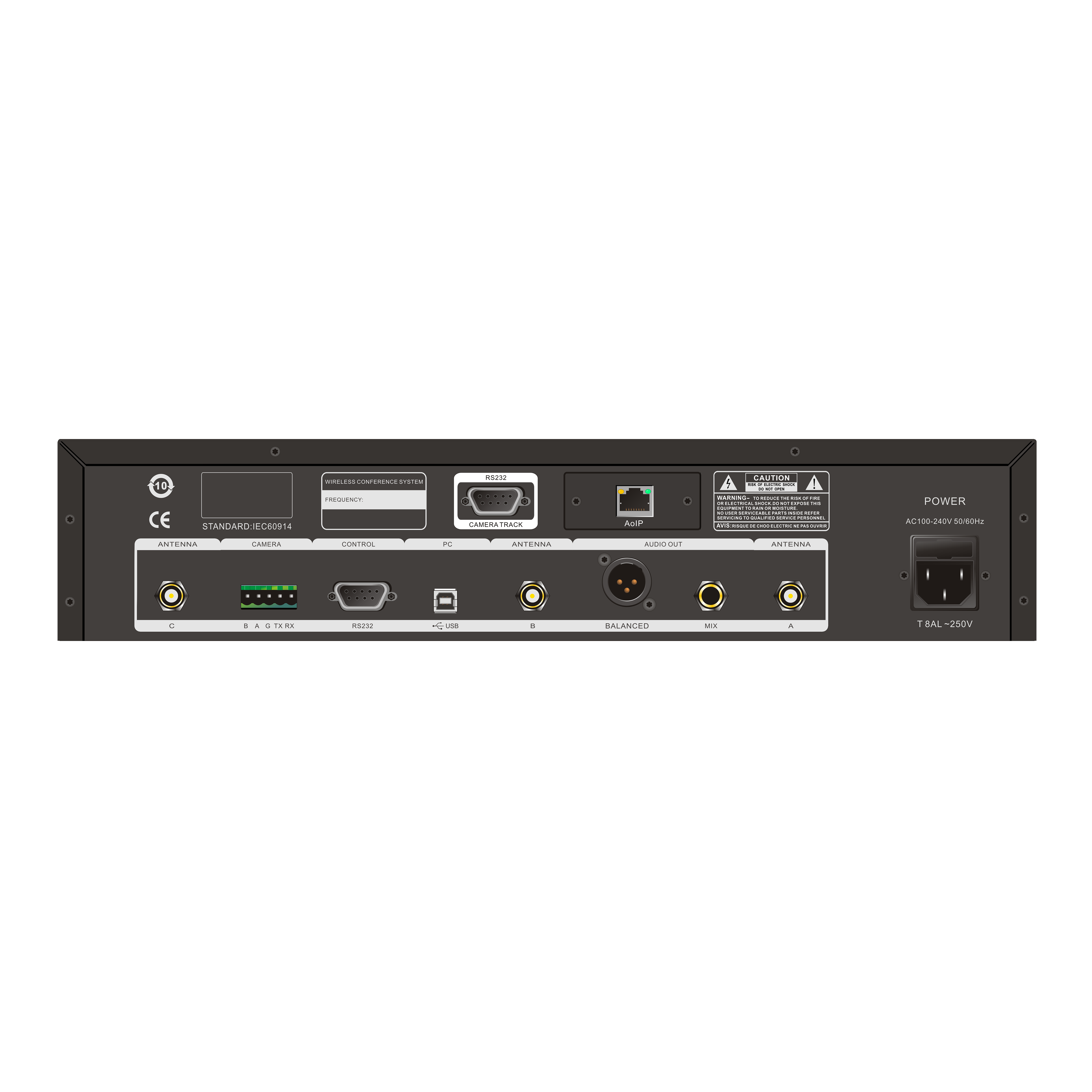

● The Conference Control Unit supports camera tracking through RS485/RS232 interfaces, compatible with VISCA and PELCO-D/P protocols. It can be independently connected to a camera for stable tracking.
● Equipped with an RS232 communication port for video switching, it can connect to HD video switchers or matrices and support linkage with up to 8 cameras.
● Embedded with a high-speed DSP and AI-based self-learning algorithms, the Wireless Control System incorporates Auto Feedback Control (AFC) and Auto Noise Cancellation (ANC). It effectively eliminates howling through deep signal analysis and reduces environmental and localized noise.
● The Conference Control Unit offers multiple meeting modes such as FIFO and Chairman Priority, allowing 1 to 4 microphones to be active simultaneously, with support for up to 128 microphones in total.
● Microphones feature adjustable directionality with 5 polar patterns: Omni-Directional, Cardioid, Super Cardioid, Strong Directional, and Figure-of-Eight.
● The 4-inch touch screen enables easy management and displays essential information including:
a. Speech mode selection and microphone quantity limits
b. Wireless RF grouping and signal strength
c. AFC on/off status
d. ANC on/off status
e. System volume adjustment
f. System settings and language switching (English/Chinese)
● The system is expandable with Dante network audio transmission, supporting mainstream protocols for broad audio interoperability.
Technical Parameters
| Carrier band: | UHF640MHz-690 MHz |
| Modulation method: | FM |
| Effective working distance: | 60 meters |
| Oscillation mode: | PLL phase-locked frequency synthesis |
| Sensitivity: | At an offset equal to 25KHz and an input of 6dBv, S/N>60dB |
| Frequency width: | 30MHz |
| Maximum Offset: | ±45KHz |
| Signal To Noise Ratio: | >105dB |
| T.H.D | <0.7%@1KHz |
| Frequency Response: | 45Hz-18KHz±1dB |
| Dimensions: | 430*277*88mm |
| Net weight: | 4kg |
