Product Features:

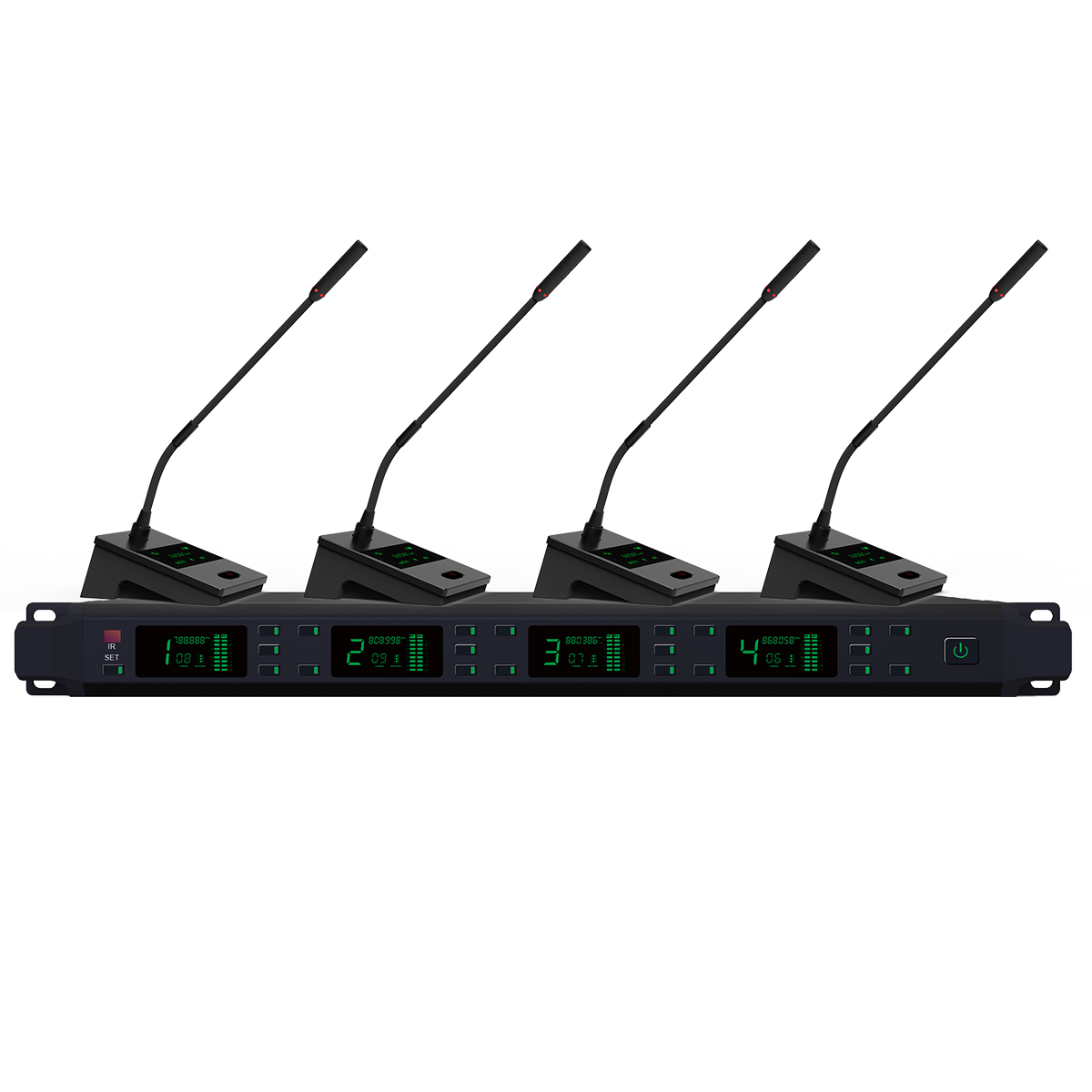

Conference System Host
• Controlled by a microcomputer CPU for advanced functions such as frequency selection, display, volume adjustment, frequency data processing, and automatic channel lock, enabling features not easily achieved by traditional systems.
• Equipped with an anti-electromagnetic interference circuit and low-delay design to eliminate all kinds of unwanted electromagnetic interference.
• LED screen for intuitive operation; all functions are displayed clearly on the LCD screen for easy system setup and monitoring.
• UHF (Ultra High Frequency) transmission, operating at 640MHz–690MHz, customizable according to national frequency allocation standards to adapt to use in various countries and regions.
• Built-in 20 preset frequency groups, 2×100 tunable frequency points, PLL phase-locked loop design, with an automatic clean channel search function to minimize interference.
• Electronic volume control with adjustable gain from 0dB to +20dB for each channel.
• Infrared automatic synchronization function: 4 independent IR frequency docking buttons allow one-touch frequency alignment, simplifying complex setup operations.
• Equipped with 4 standard BNC antennas; supports optional extended anti-interference antennas to bypass wireless shielding caused by metal cabinets.
• Enhanced receiver circuit design ensures more stable signal reception.
• Compatible with antenna distribution systems to achieve wider wireless signal coverage within the venue.
• Constructed with a high-quality IU metal chassis and aluminum alloy front panel, providing durability, aesthetics, and effective harmonic radiation isolation.
Microphone Unit
• Minimalist structural design with adjustable pitch angle, ensuring ergonomic comfort and modern aesthetics; stable and high-end appearance.
• Special cardioid condenser capsule ensures clear, bright, and natural sound quality.
• Gooseneck design with 6 indicator dots; red light ring illuminates during operation.
• Metal panel with built-in antenna; includes status lights (red ring and button light) for microphone working state indication.
• LCD display showing microphone frequency, channel, power level, open/mute status; interface is clear and user-friendly.
• Built-in speech timing function: microphone automatically starts timing when opened and stops when closed.
• Anti-electromagnetic interference circuit minimizes interference from mobile phones and other electronics.
• Wireless UHF transmission of both audio and control signals; effective communication distance: 50m indoors / 90m outdoors.
• Built-in rechargeable lithium battery, supports charging while in use.
• Ultra-low power consumption design, ensuring ≥8 hours of continuous operation per charge.
Technical Parameters:
Conference System Host
Carrier Frequency: 640MHz–690MHz
S/N Ratio: >90dB
T.H.D: <0.5% (1KHz)
Frequency Response: 30Hz–18KHz
Sensitivity: <-105dBm @20dB SINAD
Modulation Mode: UHF
Transmission Delay: <5ms
Wireless Interface: BNC / 50Ω
Power Interface: 5.5mm DC Plug
Audio Output: 4-way XLR balanced socket, 4-way 6.3mm unbalanced socket
Dimensions: 482 × 45 × 210mm (L×W×H)
Net Weight: 2.4Kg
Microphone Unit
Frequency Response: 90Hz–17KHz
Transmit Power: <10mW
Max SPL: 120dB @1% T.H.D (1KHz)
Sensitivity: -32dBv (25mAh)
Type: Cardioid Condenser
Modulation Mode: UHF
Battery Capacity: Built-in lithium battery 2000mAh
Carrier Frequency: 640MHz–690MHz
Power Interface: 3.5mm DC Plug
Shell Material: Aluminum alloy + ABS
Dimensions: Base: 138 × 99 × 60mm; Pole: 380mm
Net Weight: 650g
