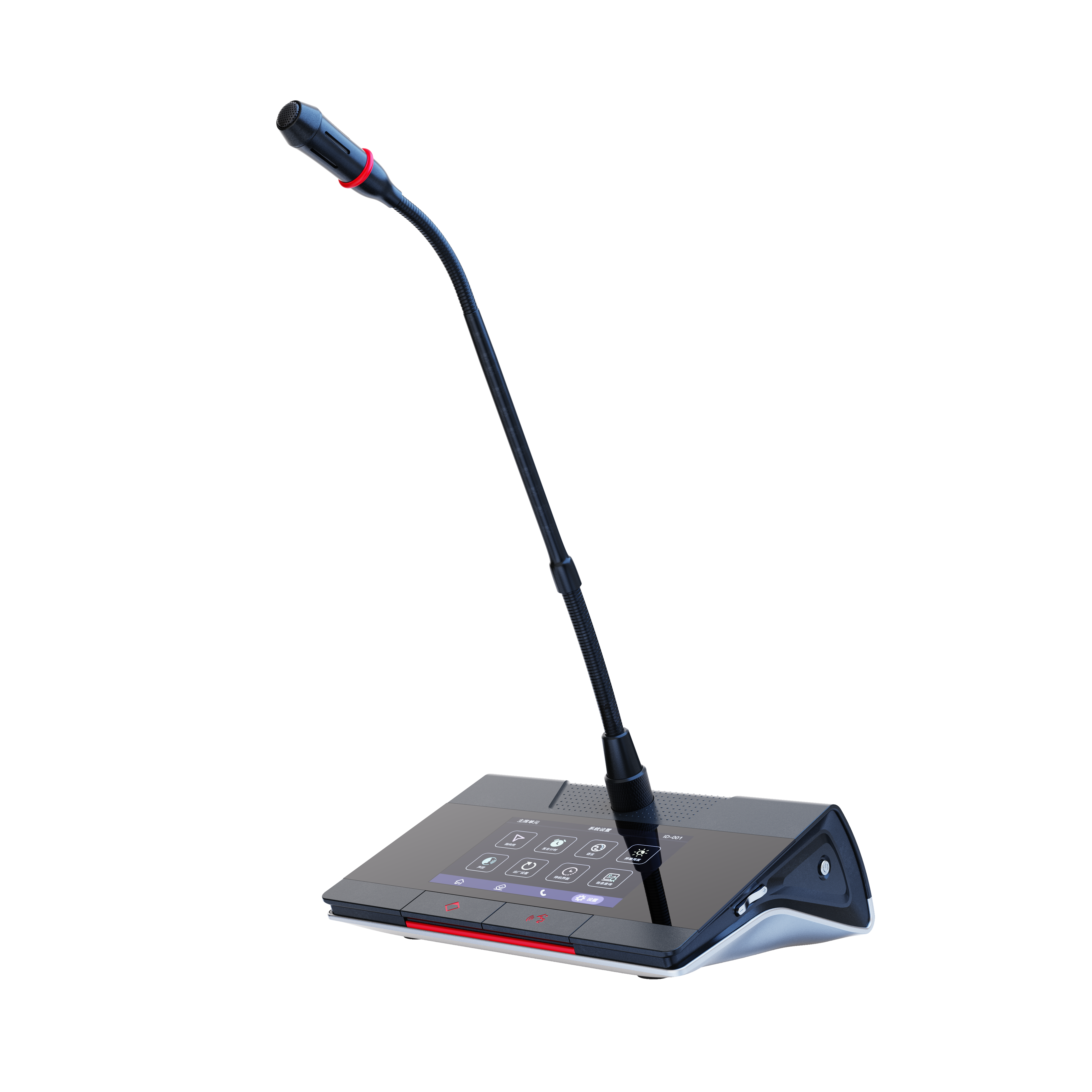

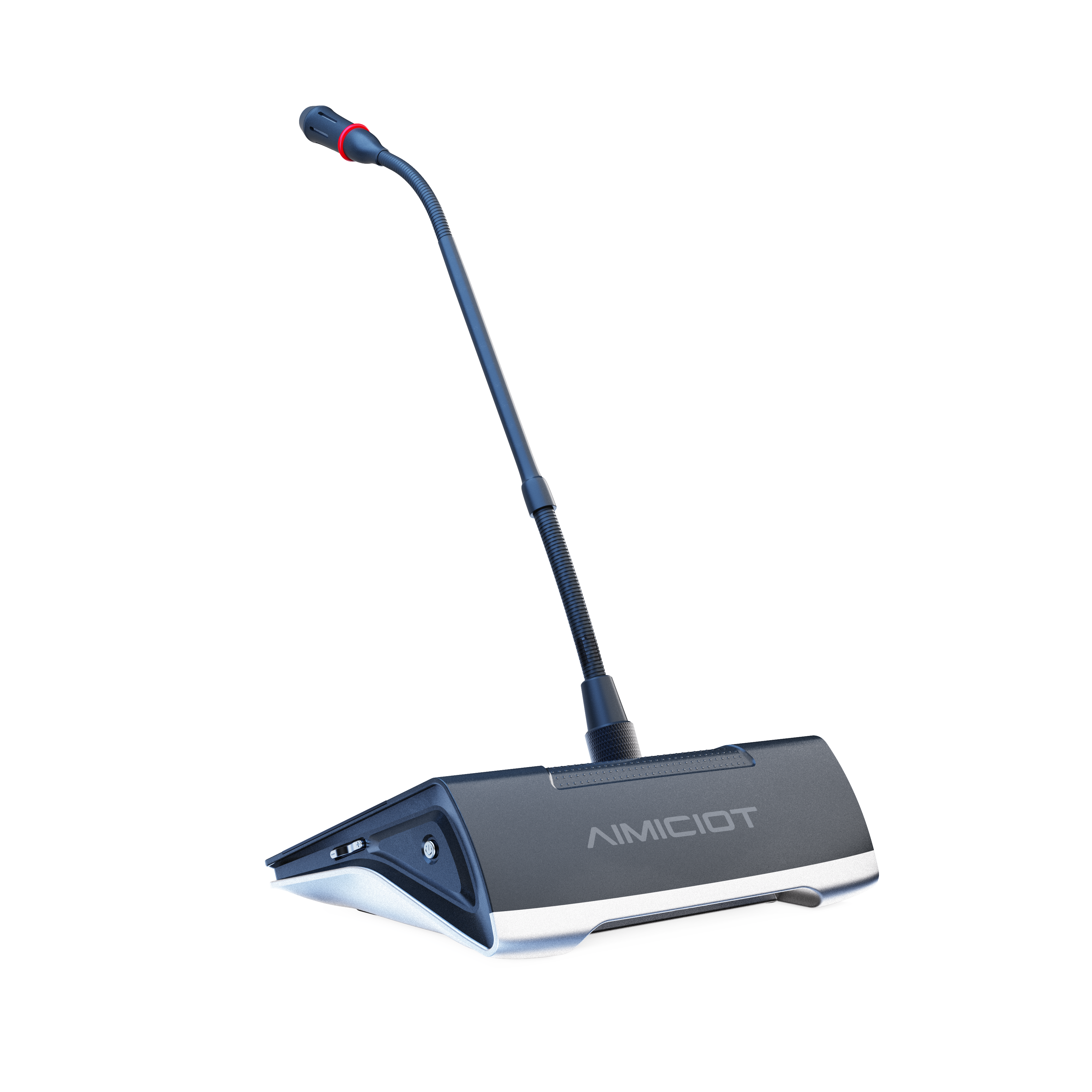

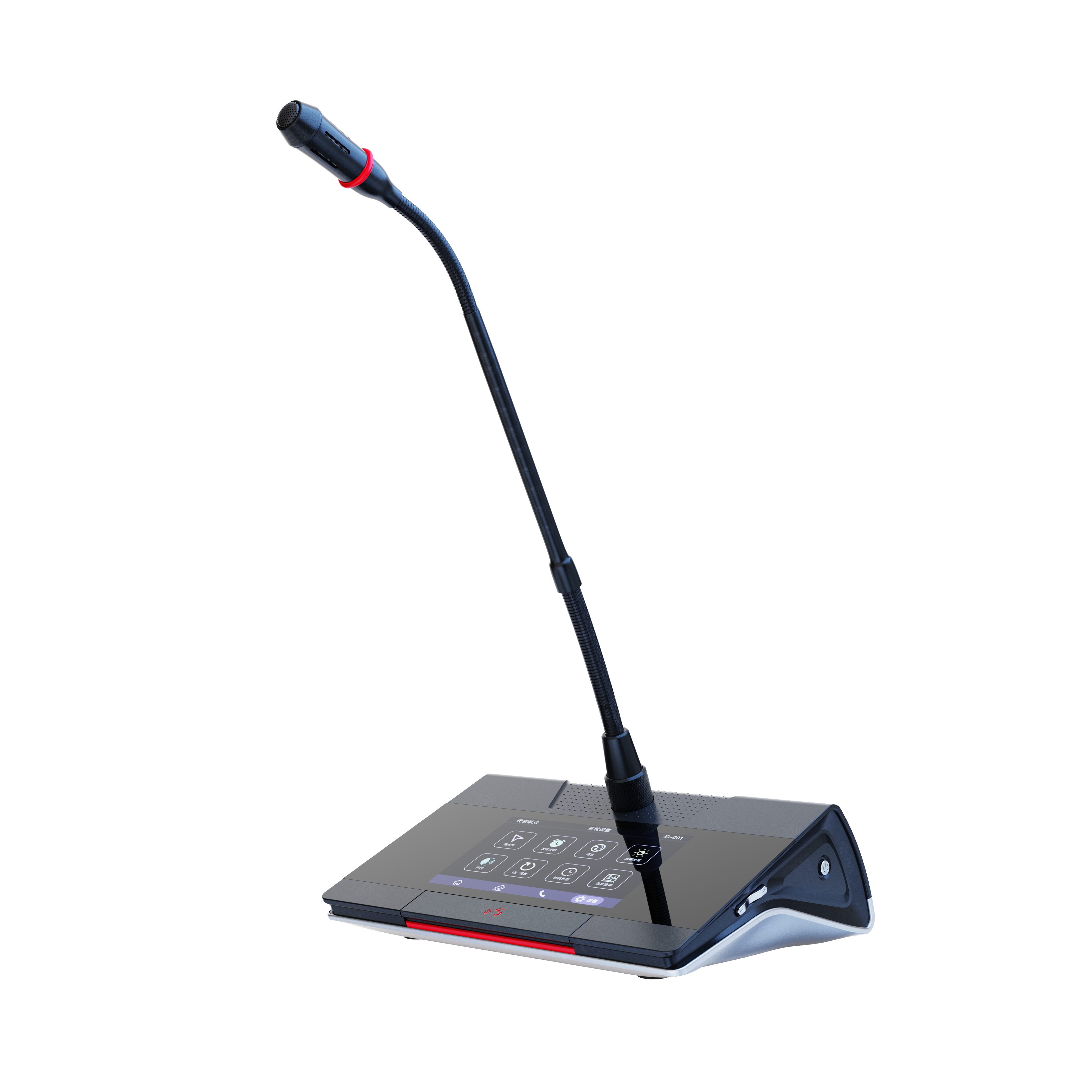

Wireless Touchscreen Goosenecek Meeting Microphone

  • omnidirectional, wide cardioid, cardioid, supercardioid, figure 8
  • cardioid condenser
  • 40Hz-20KHz
  • Mechanical switch
  • Base: 180*142*59mm Gooseneck: 415mm
UN560C-E/UN560D-E

Overview


This professional touch screen Meeting Microphone integrates advanced audio technology with user-centric design. Combining exceptional sound quality, stable transmission, and intelligent management, this Wireless Gooseneck Microphone system is tailored for efficient and secure modern conferences.


Product features


Core Technology & Sound Quality

• Employs full digital wireless audio codec technology with strong anti-interference capability, ensuring stable signal transmission without packet loss and clear, smooth communication;

• Supports hign-precision audio sampling with a transmission latency of  less than 5ms, delivering lossless sound quality and an immersive on-site experience;

• The wireless gooseneck microphone incorporates a high-precision electret condenser microphone capsule that effectively suppresser mobile phone interference, offering clear, bright sound and high sensitivity;


Security & Stability

• Integrates digital encryption and ID pairing technology to prevent eavesdropping and unauthorized access, ensuring meeting privacy;

• Supports 3-level adjustable transmission power to adapt to different distances and environmental needs, guaranteeing stable communication;

• The chairman touch screen meeting microphone has priority control function to manage speaking order and can be flexibly placed in any location;


Smart Interaction & Convenient Management

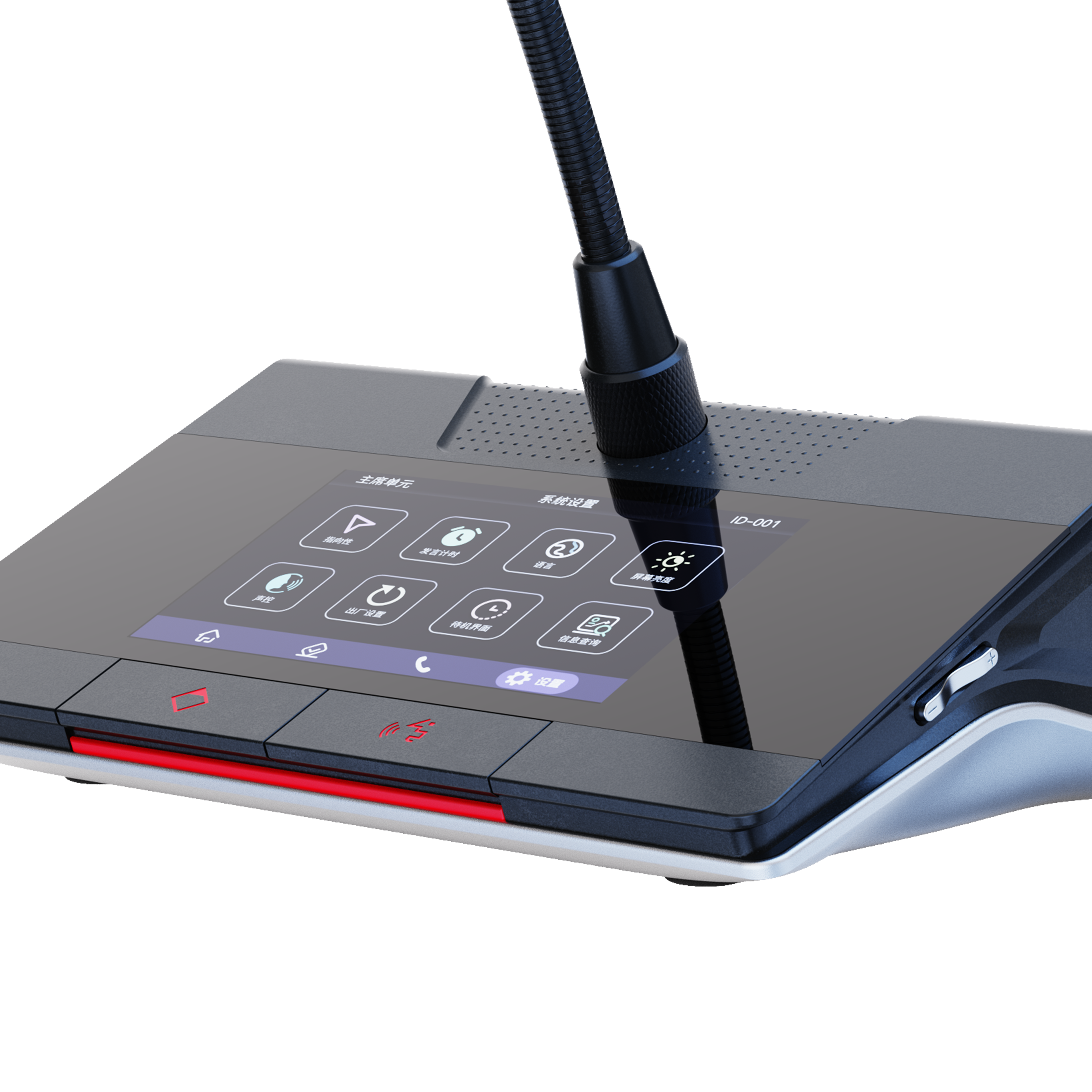

• The touch screen meeting microphone is equipped with a refined 4-inch touchscreen supporting Chinese/English interface switching, displaying information such as speaker name, timer, battery level, and signal strength;

• Supports chairman check-in, voting initiation, vote counting, and result viewing to meet conference management needs;

• Offers personalized settings including microphone gain adjustment, standby screensaver, and clock display;


Multiple Speaking Modes & Flexible Operation

• Supports four speaking modes: First-In-First-Out (FIFO), Application, Limit, and Voice Activation;

• Voice Activation allows adjustable sensitivity and automatic shut-off time for intelligent microphone management;

• The wireless gooseneck microphone provides two activation methods: push-to-talk or push-and-hold to talk, release to mute;

• Long-pressing the volume key allows immediate entry into the conference without frequency pairing, ensuring simple and efficient operation;


Battery Life & Charging

• Built-in low-power large-capacity battery supports up to 10 hours of continuous speaking and 19 hours of standby time;

• Supports Type-C direct charging or removable battery pack replacement, offering flexibility for various usage scenarios;


System Integration & Expansion

• When paired with the host and pre-configured via computer, the touch screen meeting microphone enables automatic camera tracking function;

• Each wireless gooseneck microphone unit has a unique serial number and supports manual ID assignment for easy system management;

• All microphone units automatically power off when the host is disconnected, eliminating the need for individual shutdown;



Technical Parameters


RF Power:10mW
Maximum Deviation:±45KHz
Frequency Bandwidth:50MHz
Polar Patterns:Omnidirectional, Wide Cardioid, Cardioid, Supercardioid, Figure-8
Microphone Type:Cardioid Condenser
Battery Capacity:5200mAh
Frequency Response: 40Hz-20KHz
Switching Method:Mechanical Switch
Operating Time: 10 hours (speaking), 19 hours (standby)
Dimensions: Base: 180*142*59mm; Dual Gooseneck Rod: 415mm
Weight:975g


UN560C-E/UN560D-E

omnidirectional, wide cardioid, cardioid, supercardioid, figure 8

cardioid condenser

40Hz-20KHz

Mechanical switch

Base: 180*142*59mm Gooseneck: 415mm
