Overview

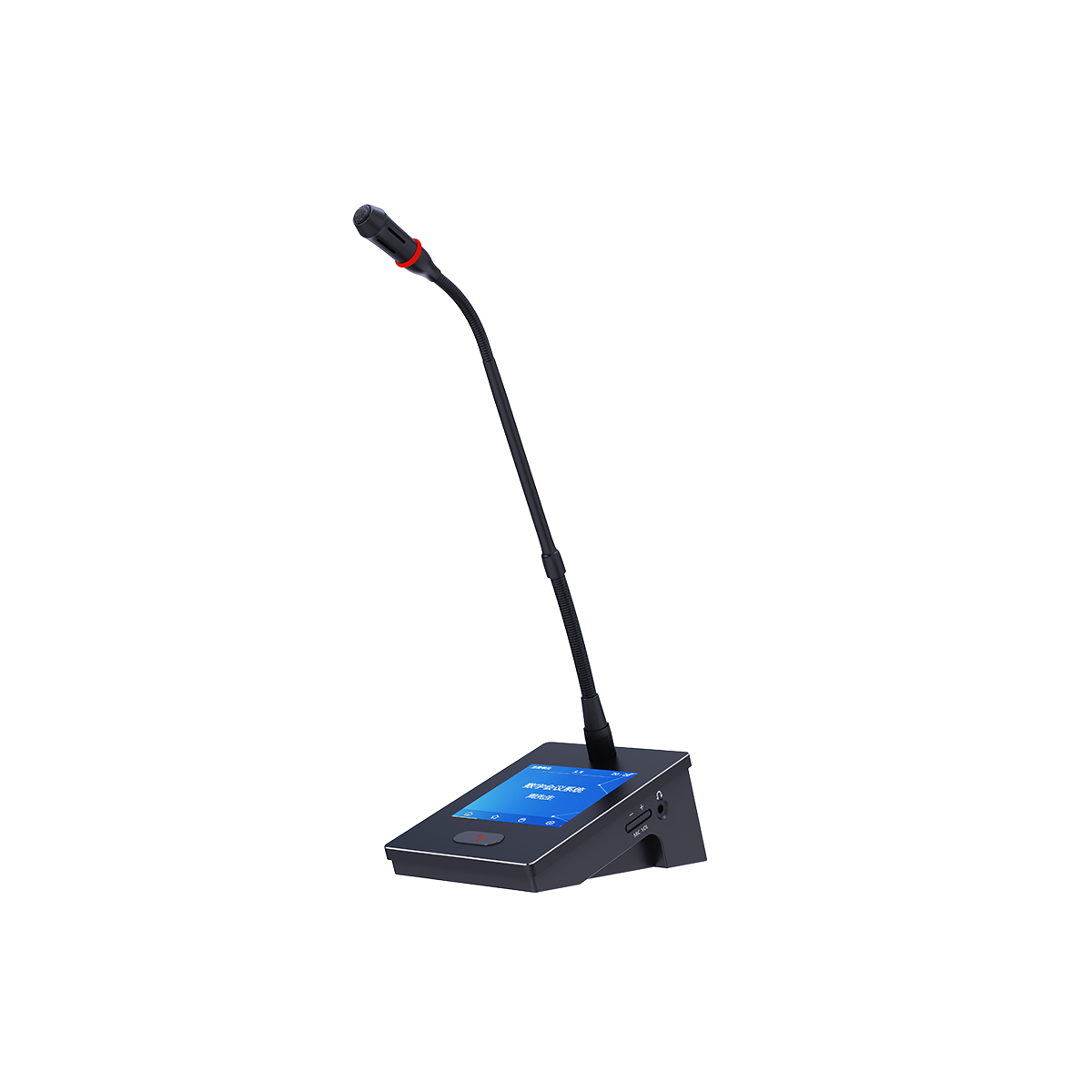

The Video Wired Conference System Microphone represents a sophisticated audio video microphone solution that combines advanced digital technology with intuitive user interaction. Designed for modern conference environments, this system delivers exceptional audio performance while providing comprehensive meeting management capabilities through its elegant touch screen interface.
This Video Wired Conference System Microphone offers an ideal audio video microphone solution for professional conference environments, combining superior audio performance with intelligent meeting management features. The system's robust design and advanced functionality make it suitable for various meeting scenarios, from corporate boardrooms to government conference facilities.
Product features
Advanced Audio Technology
• Utilizes dual electret condenser microphone capsules for clear, bright sound quality with high sensitivity
• Features variable directivity technology with five polar patterns (Omni-Directional, Wide Cardioid, Cardioid, Super Cardioid, Figure-of-Eight)
• Full digital audio processing with high-performance CPU for superior sound quality
• Built-in anti-cell phone interference technology for reliable operation
Interactive Touch Screen
• 4-inch elegant touch display for seamless user interaction
• Real-time display of speaker information, speaking time and countdown
• Direct microphone directivity settings and gain adjustment
• Integrated sign-in and voting functionality
• Multi-language support (English/Chinese) with customizable system settings
Reliable System Performance
• Digital and analog dual backup function ensures uninterrupted operation
• Ring connection technology allows hot-plugging and fault-tolerant operation
• Conference-specific 8-core cable connection (1.8m included)
• Unique serial numbering with manual ID assignment capability
Comprehensive Meeting Control
• Chairman unit with priority control and unlimited connection positioning
• VIP delegate units exempt from maximum opening limitations
• Four speaking modes: Normal, FIFO, Free, and Apply
• Integrated camera tracking support with computer presets
• Dual-color LED indicators (green for speaking status)
Technical Parameters
| Power Supply: | DC24V (host power supply) |
| Connection: | Aviation 8P special cable |
| Power Consumption: | 5W |
| Polar Patterns: | Omnidirectional, pancentric, cardioid, hypercardioid, figure-of-eight |
| Type: | Condenser Microphone |
| Distortion: | <1% |
| Frequency Response: | 40Hz-20KHz |
| Sensitivity: | -32dBV |
| Dimension: | Base: 99*138*60mm Pole: 415mm |
| Weight: | 750g |
