Overview

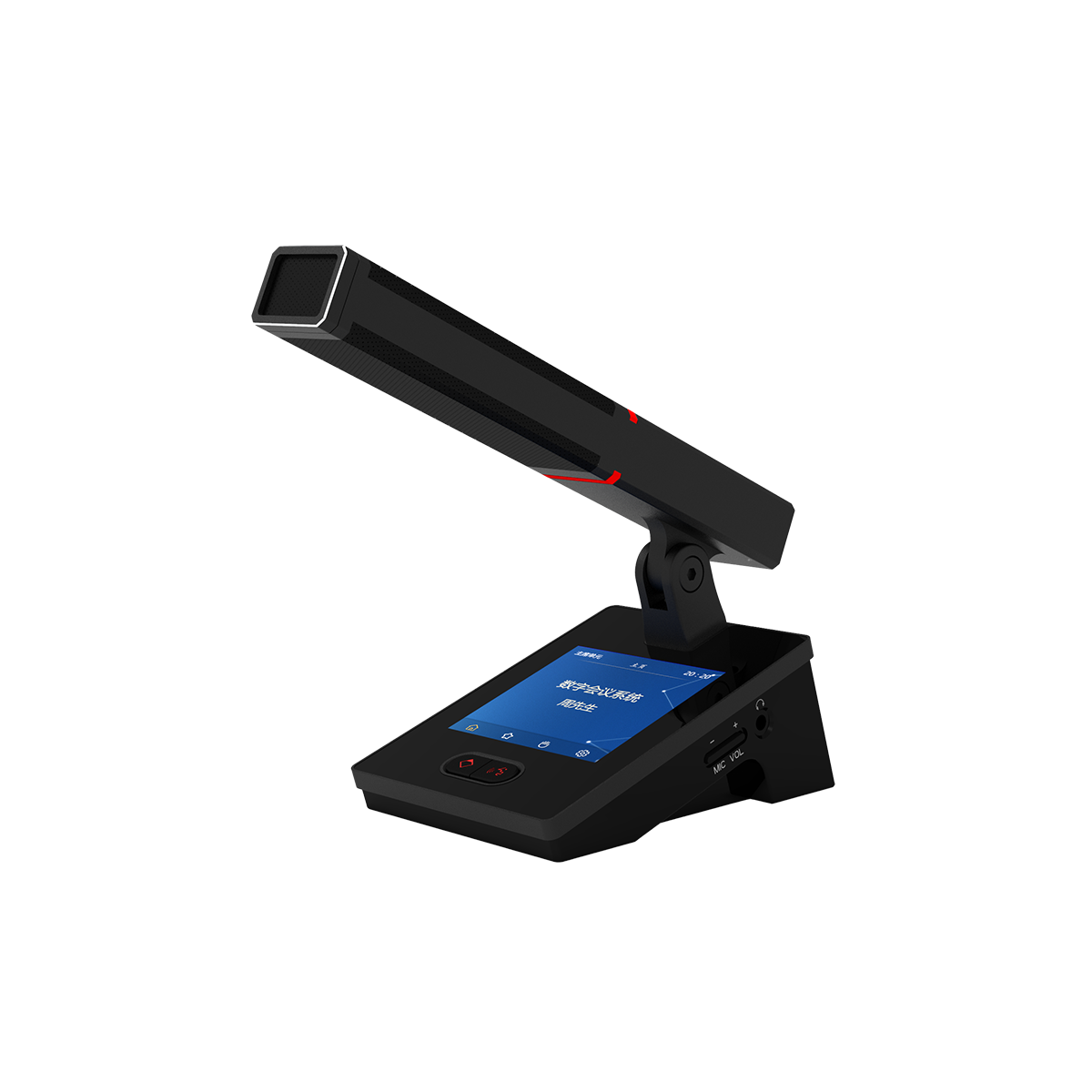

The Digital Interactive Voting Microphone delivers clear, high-sensitivity audio and professional conference solutions for modern meeting rooms, combining full digital technology with high-performance CPU processing. The Touchscreen Voting Microphone features a 4-inch interactive display for managing speaker info, gain, microphone directivity, sign-in, and voting functions. Supporting five polar patterns and VIP management, with hot-plug, ring connection, dual digital and analog backup, and camera tracking, this system ensures reliable, flexible, and professional audio performance for all types of conferences.
Product features
Advanced Digital Audio Technology
• The Digital Interactive Voting Microphone adopts fully digital conferencing technology with a high-performance CPU, providing clear, bright, and high-sensitivity sound.
• Dual digital and analog backup ensures stable operation and uninterrupted performance for important meetings.
• Independent microphone gain adjustment allows speakers with different voice volumes to speak smoothly.
Ergonomic Design & User Interface
• Minimalist and elegant design provides a modern look and ergonomic comfort for conference participants.
• The Touchscreen Voting Microphone features a 4-inch display for interaction between speakers and conference managers, showing speaker information, mic directivity, gain adjustment, sign-in, voting, language settings, and system info.
• Built-in anti-interference microphone core ensures solid connection and durability.
Microphone & Sound Performance
• Special electret condenser dual microphone cores deliver high sensitivity and clear, full sound.
• Variable microphone directionality allows adjustment according to different environments, speaker positions, and meeting styles.
• Supports five main polar patterns: Omni-Directional, Wide Cardioid, Cardioid, Super Cardioid, and Figure-of-Eight, optimizing the Touchscreen Voting Microphone’s performance.
System Flexibility & Management
• Ring handheld connection technology ensures the failure or replacement of one microphone does not affect other units, enhancing system reliability.
• Hot-plug support allows additional microphones to be added anytime without shutting down the system.
• Chairman and delegate units provide flexible control, including VIP management, priority control, and four speaking modes: Normal, FIFO, Free, and Apply.
Smart Features & Accessories
• Compatible with camera tracking hosts for automatic tracking using computer presets.
• Dual-color LED indicators: red for speaking, green for application status.
• Each unit comes with 1.8 meters of conference-specific 8-core cable and a 3.5 mm stereo ear plug.
• Unique serial numbers for each unit allow manual ID assignment for organized conference management.
Technical Parameters
| Power Supply: | DC24V (host power supply) |
| Connection: | Aviation 8P special cable |
| Power Consumption: | 5W |
| Polar Patterns: | Omnidirectional, wide cardioid, cardioid, supercardioid, figure-of-eight |
| Type: | Condenser Microphone |
| Distortion: | <1% |
| Frequency Response: | 40Hz-20KHz |
| Sensitivity: | -32dBV |
| Dimension: | Base: 99*138*260mm |
