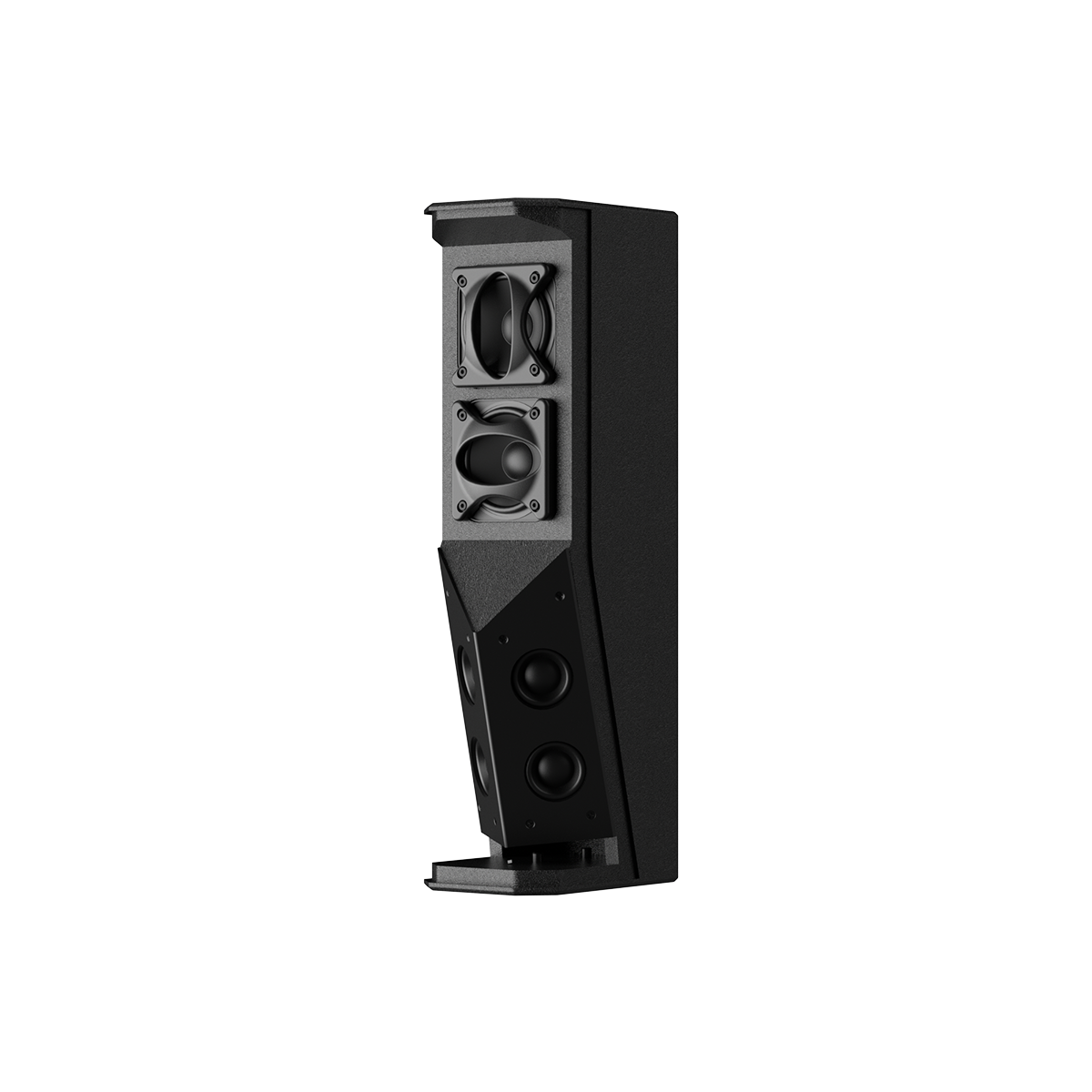

Variable Vertical Beam Steerable Column Speaker

The Gradient Beam DSP Column Speaker is engineered with advanced research on spatial acoustics, optimizing sound radiation in both horizontal and vertical planes. Physical directional waveguides suppress unwanted side lobes, ensuring precise sound directivity.

Horizontally, two directional beams cover near-field and far-field areas, with adjustable sound pressure levels. DSP control allows fine-tuning of near-field coverage for targeted horizontal projection, delivering clear sound exactly where needed.

Vertically, asymmetric radiation is achieved using DSP-driven gradual delay on the two beams combined with a specially designed acoustic structure. This creates a downward-focused radiation pattern, reduces ceiling reflections, and ensures uniform sound pressure and high clarity, even in reverberant environments.

Ideal for lecture halls, command centers, airports, stations, lobbies, exhibition halls, museums, and other large or medium-sized venues.

• Directional Waveguides – Suppress side lobes and achieve accurate directivity.

• Horizontal Gradient Beams – Two beams:

Near field: 160° wide coverage

Far field: 100° narrower coverage for longer distance
Adjustable sound pressure allows precise targeting.

• DSP-Controlled Near-Field Adjustment – Focused coverage reduces reflections and enhances speech clarity.

• Asymmetric Vertical Radiation – Downward beam pattern improves uniformity, reduces ceiling reflections, and delivers clear direct sound without tilting the speaker.

• AOIP Network Input – Supports mainstream network audio protocols.

• Flexible Inputs – Analog, digital, or mixed signals.

• Network Management – Full device control via direct switch connection.

• Advanced DSP Functions – Beam control, 7-band EQ, high/low-pass filtering, input level, mute, presets, and system settings.

• Built-in Digital Amplifier – Multi-channel Class D, high efficiency, protection for overheat and short circuits.

• High-Quality Drivers – 2 × 3.5" for far field, 4 × 2" for near field; scientifically coupled for clear and transparent sound.

• Slim Wooden Enclosure – Available in black or white, integrates seamlessly into modern spaces.

Acoustic

Electronics

Amplifier

DSP Module
