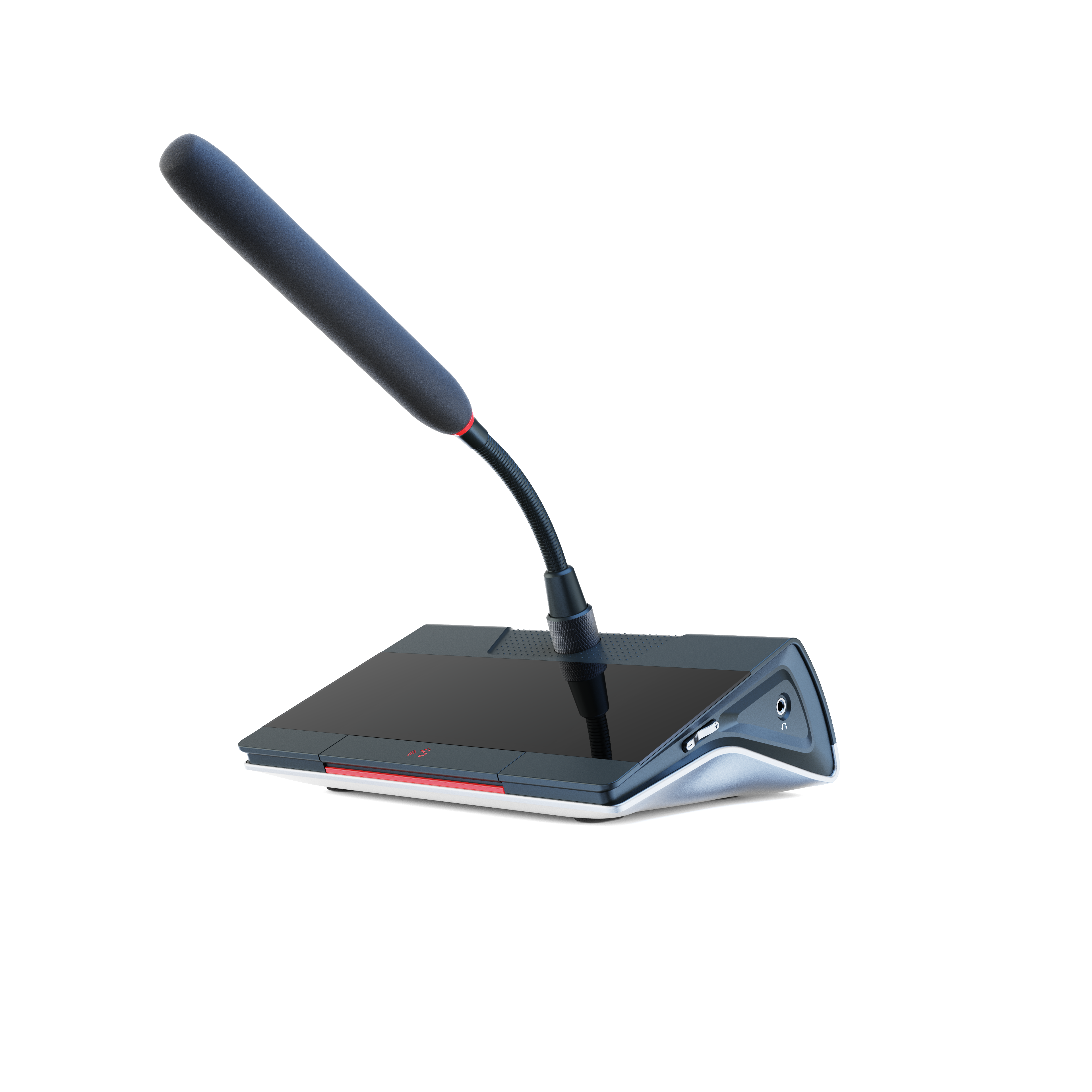

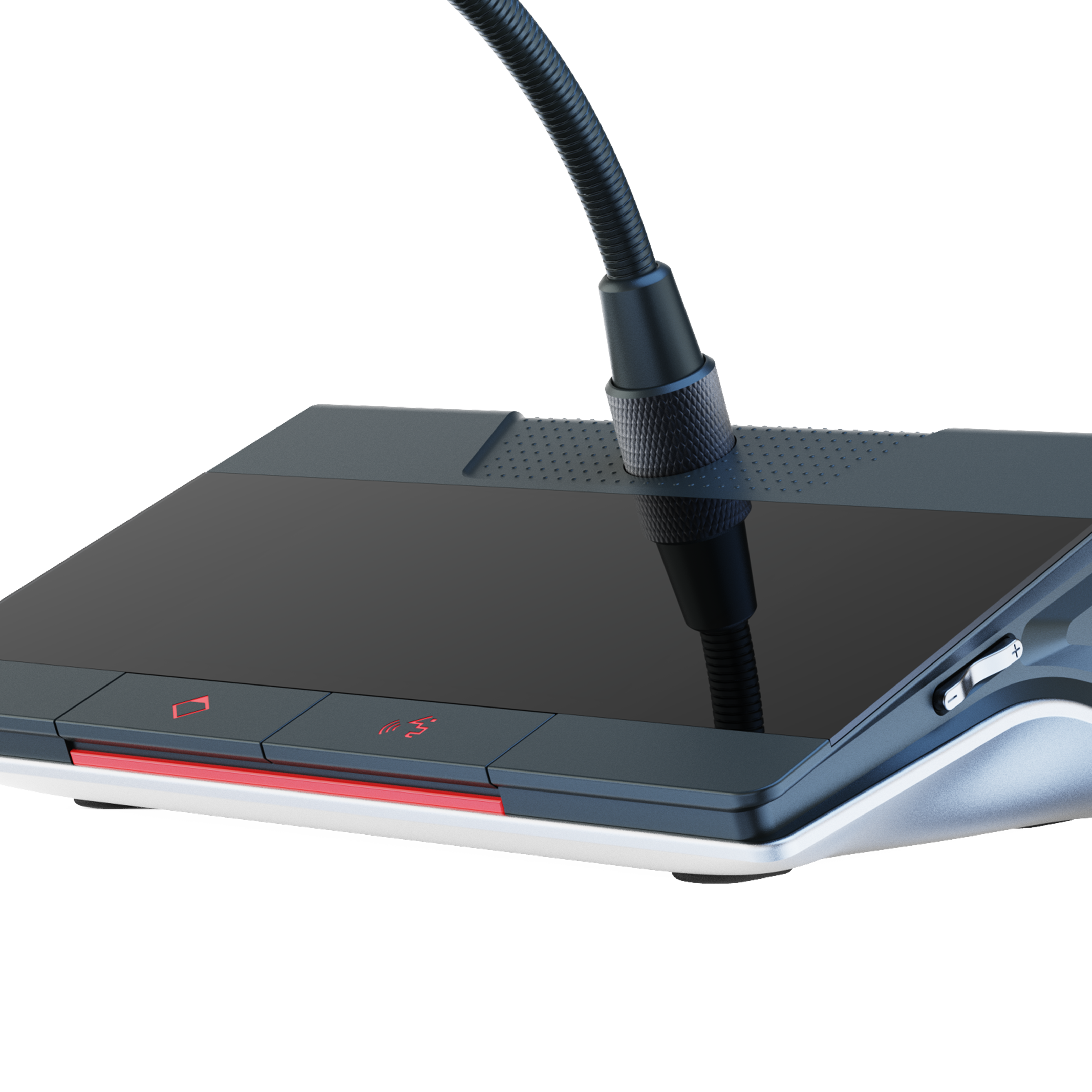

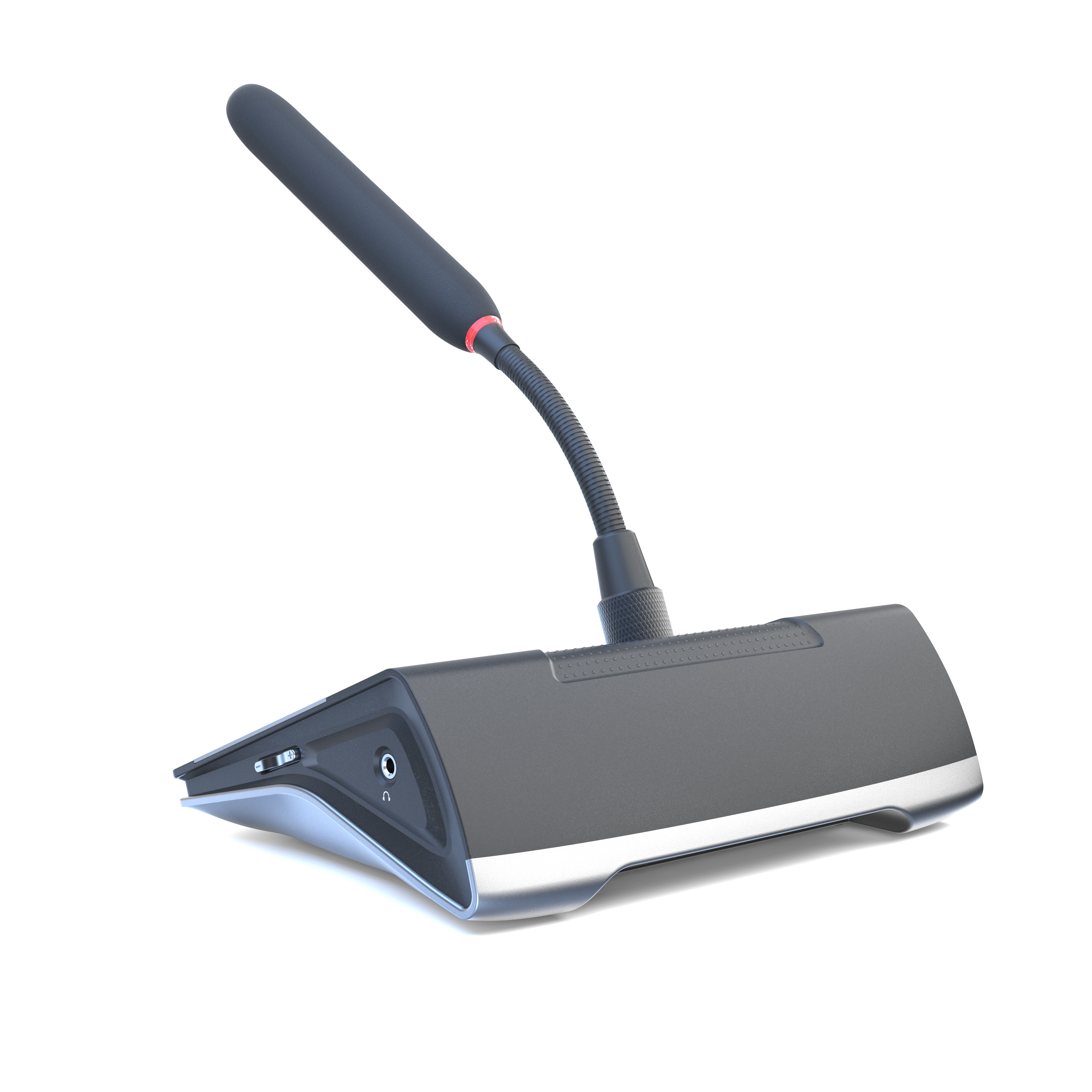

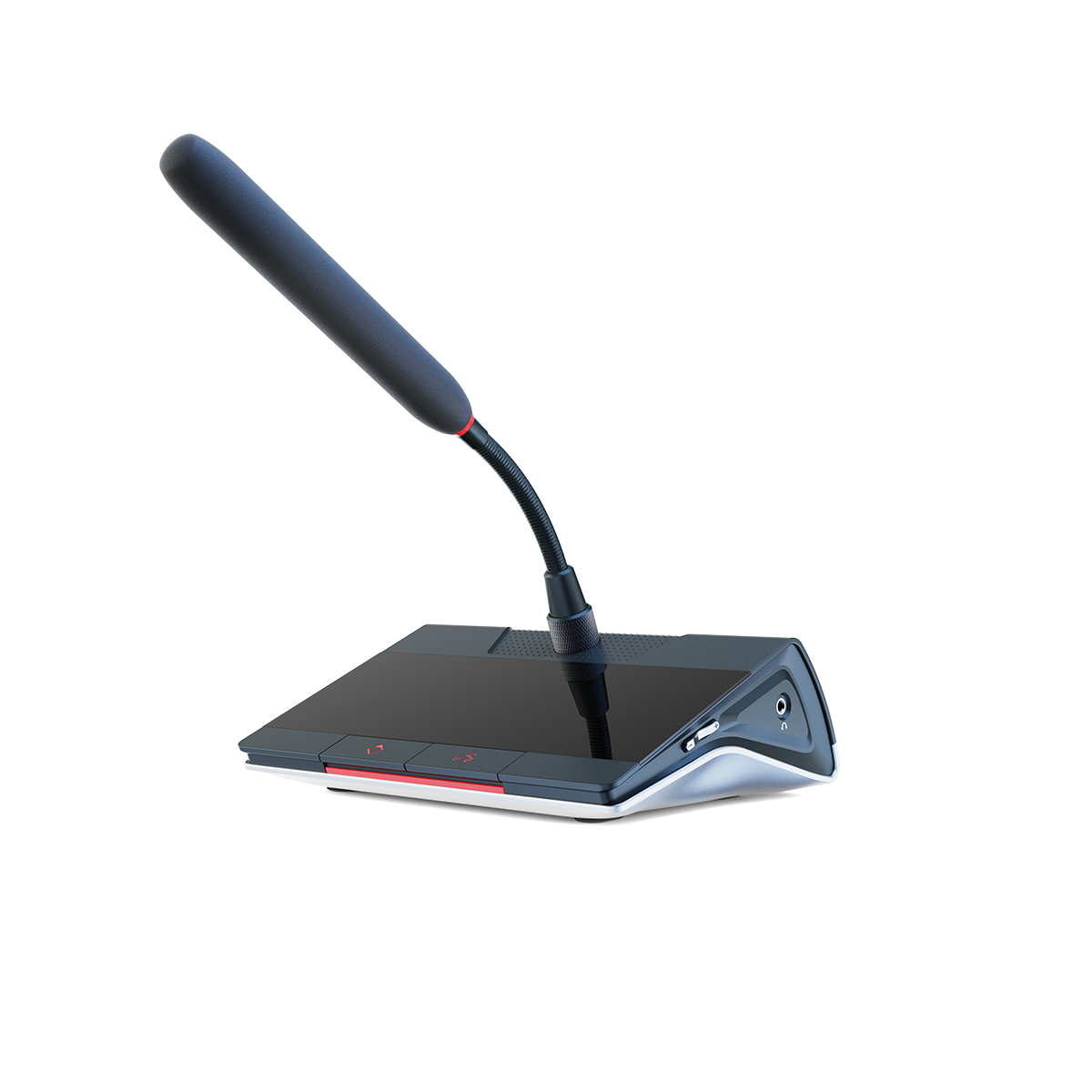

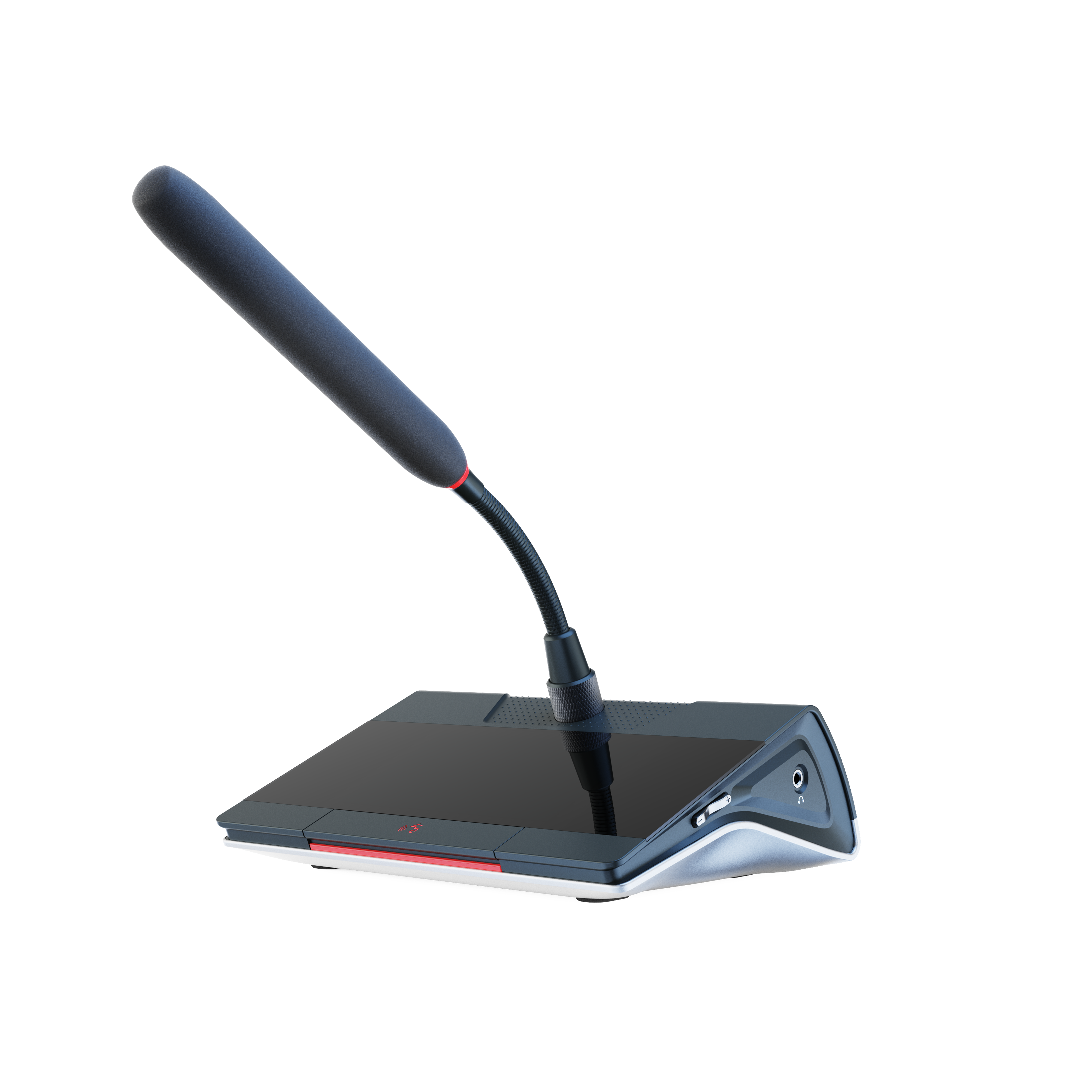

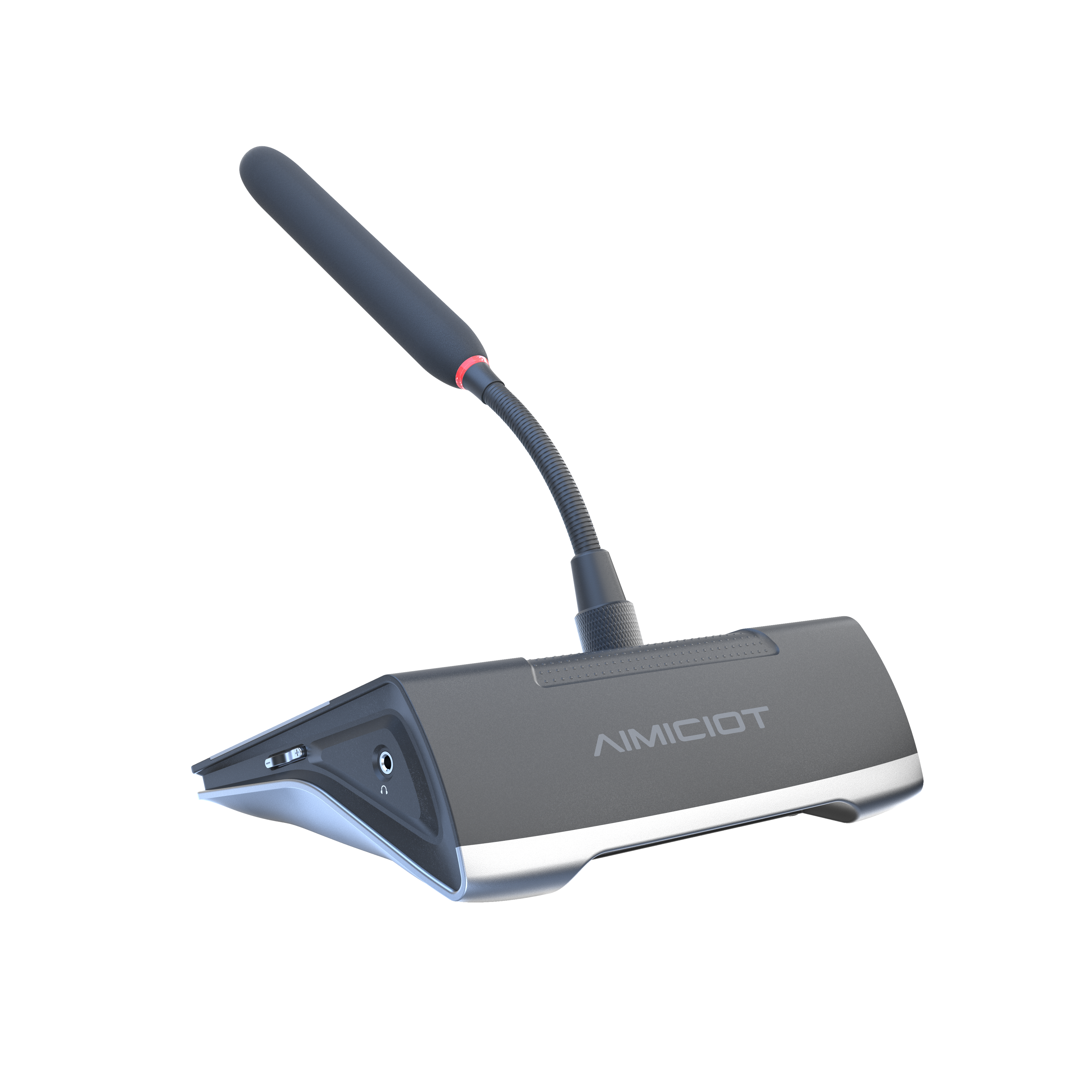

Wired Table Shotgun Microphone For Conference Room

    UN20C-G/UN20D-G

    Overview


    This professional wired table shotgun microphone represents the pinnacle of conference room audio technology. Designed specifically for sophisticated conference room environments, it combines elegant aesthetics with advanced digital processing capabilities. The system delivers exceptional audio clarity through its specialized electret condenser capsule design while ensuring unmatched reliability through features like ring topology connectivity and optional dual backup. With intelligent meeting management functions including multiple speaking modes and chairman priority controls, this complete conference room solution guarantees every meeting proceeds with crystal-clear communication and flawless operation.

    Product features


    Advanced Audio Performance

    • Professional wired table shotgun microphone with special electret condenser capsule for clear, bright sound reproduction

    • Full digital audio technology with high-performance CPU for faster processing and superior sound quality

    • Anti-interference technology effectively eliminates mobile phone disturbances


    System Reliability & Flexibility

    • Optional analog/digital dual backup ensures uninterrupted operation during critical meetings

    • Ring topology "hand-in-hand" connection - failure of any single microphone or connection doesn't affect system operation

    • Hot-plugging support allows adding microphones to the conference room system during operation

    • Built-in 1.8m Cat6 cable with flexible bottom/rear exit options for various installation needs


    Intelligent Meeting Management

    • Chairman unit maintains priority control with unrestricted connection positioning

    • Representative units can be set as VIP units, bypassing speaking mode restrictions

    • Supports 5 speaking modes: Normal, FIFO, Free, Application, and Voice Activation

    • Voice activation feature with adjustable sensitivity and automatic mute timeout setting

    • Two microphone activation modes: toggle switch and push-to-talk operation


    Professional Design & Connectivity

    • Elegant, ergonomic design ensures both aesthetics and user comfort

    • Dual-color LED indicators (red during speaking) provide clear status visibility

    • 3.5mm stereo headphone jack for private monitoring on each microphone

    • Secure connections and durable construction ensure long-term reliability


    Additional Capabilities

    • Chairman can approve speaking requests in application mode with a single button press

    • Supports camera tracking integration when paired with tracking host systems

    • Each conference room microphone has unique serial number for easy identification

    • Manual ID assignment capability for flexible system management


    Technical Parameters


    Power Supply:DC24V (host power supply)
    Connection:CAT6E Ethernet cable
    Power Consumption:1.5W
    Polar Patterns:cardioid
    Microphone Type:Condenser
    Distortion:<1%
    Frequency Response: 40Hz-20KHz
    Switching Method:Mechanical Switch
    Sensitivity: -32dBV
    Dimensions: Base: 180*142*59mm; Pole: 245mm
    Weight:885g


    UN20C-G/UN20D-G
