Overview

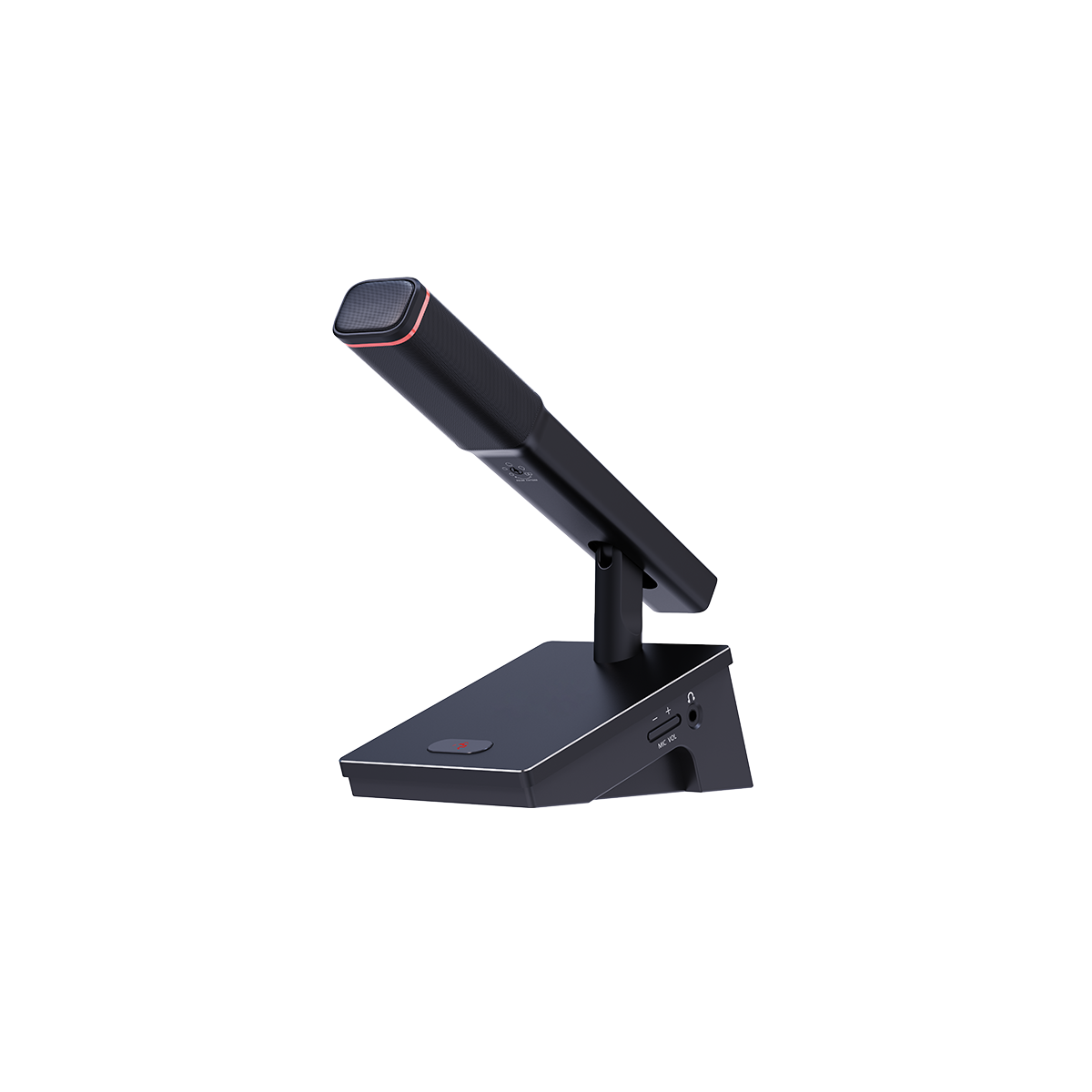

This high-end, fully digital discussion unit is a cornerstone of modern Conference System Solutions for Meeting Room, delivering exceptional audio performance, reliability, and control for professional environments.
In conclusion, this product is a comprehensive, technologically advanced, stable, and intelligent conference system solution. It is highly suitable for high-end meeting environments in government, corporate, and education sectors that prioritize superior audio performance and efficient meeting management.
Product features
Superior Sound Quality & Flexible Pickup:
• Features a dual microphone capsule design and five adjustable polar patterns (Omnidirectional, Cardioid, Hypercardioid, Supercardioid, Figure-8), allowing precise adaptation to various room acoustics and speaker positions for optimal clarity.
• Full digital audio technology and a built-in high-performance CPU ensure high-fidelity sound quality and fast processing.
• Independent microphone gain adjustment and anti-mobile phone interference capabilities further enhance speech clarity and stability.
High System Reliability & Convenience:
• Ring-type Daisy-Chain Connection: A single point of failure (either a unit or cable connection) does not affect the entire system, ensuring extreme reliability.
• Supports Hot-Plugging: Units can be added or removed from the system at any time without needing to power down, facilitating easy expansion and maintenance.
• Includes a built-in 2-meter Cat6 network cable for convenient connection.
Powerful Meeting Management & Control:
• Chairman Unit Privileges: Has ultimate control, including the ability to turn off all representative microphones, approve speaking requests, and can be connected anywhere in the loop.
• Multiple Speaking Modes: Supports four modes (Normal, FIFO, Free, Application) to suit different meeting workflows.
• VIP Unit Setting: Allows specific representative units to be exempt from the maximum open microphone limit.
• Roll Call Function: Enables electronic attendance tracking, viewable via the software.
• Camera Tracking Integration: Can interface with cameras for automatic tracking of the active speaker.
Modern Design & Practical Features:
• Minimalist aesthetic with an ergonomic design, offering a modern look and feel.
• Dual-color LED (LED indicator) clearly shows speaking status.
• Equipped with a 3.5mm headphone jack for private listening.
• Each unit possesses a unique ID for easy identification and system management.
Technical Parameters
| Power Supply: | DC24V (host power supply) |
| Connection: | Network cable |
| Power Consumption: | 2W |
| Polar Patterns: | Omnidirectional, pancentric, cardioid, hypercardioid, figure-of-eight |
| Type: | Condenser Microphone |
| Distortion: | <1% |
| Frequency Response: | 40Hz-20KHz |
| Sensitivity: | -32dBV |
| Dimension: | Base: 99*138*260mm |
| Weight: | 930g |
