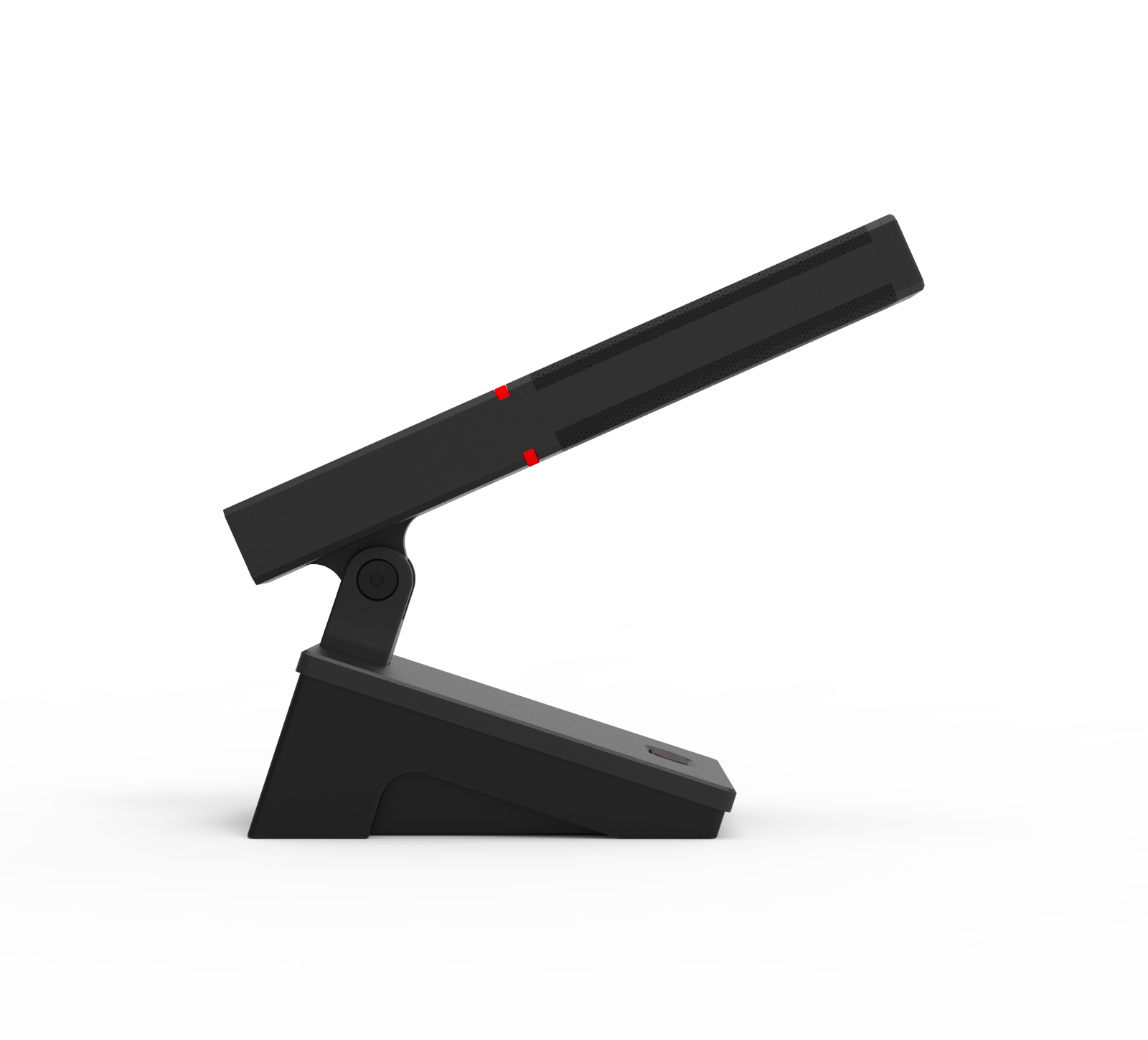

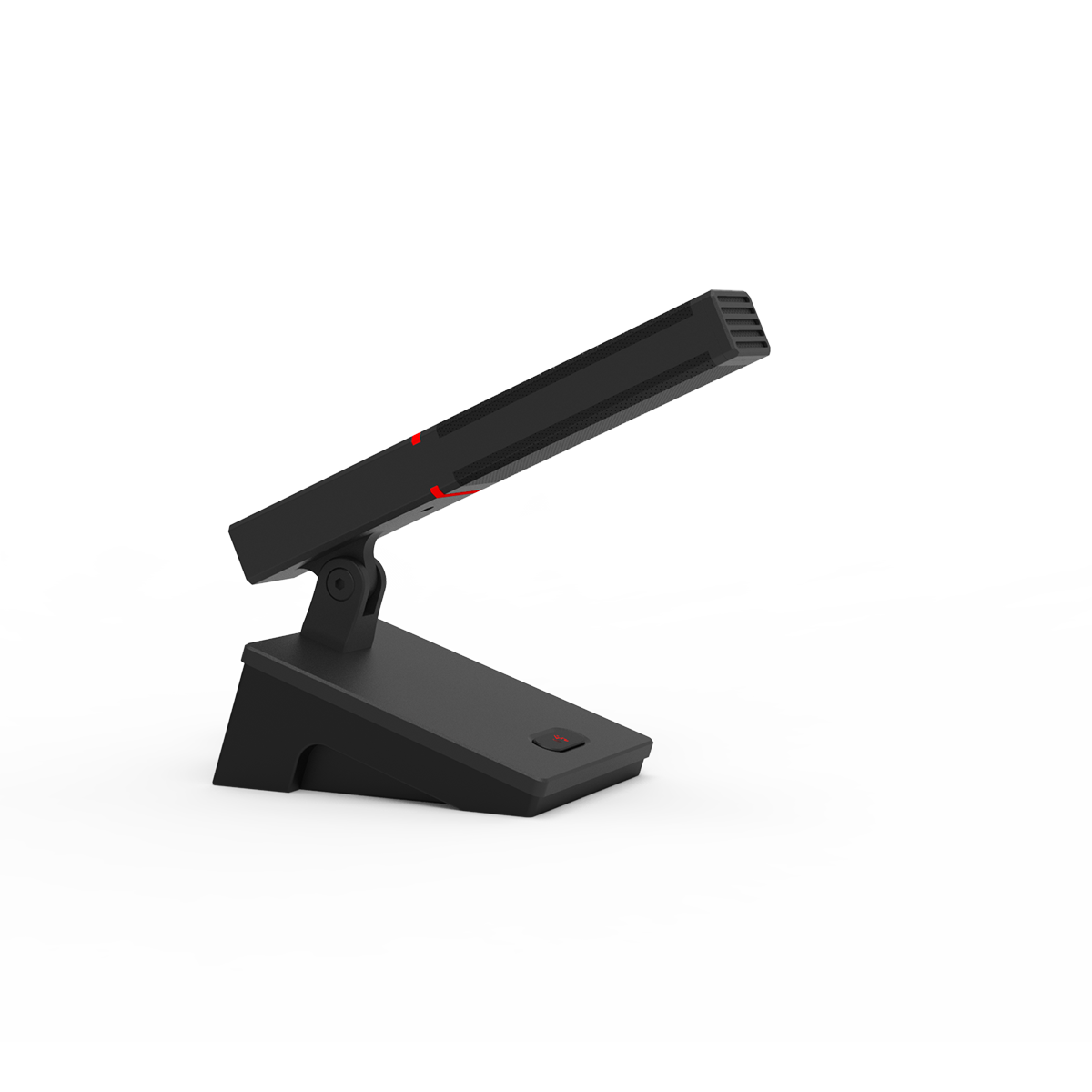

Wired Conference System Table Mic For Meeting

    DN20C-S/DN20D-S

    Overview


    The Wired Conference System with a professional Table Mic for Meeting design integrates digital audio processing, intelligent management, and flexible user control. Its reliable ring connection, variable directionality, and chairman priority features ensure smooth, efficient, and professional meetings. With advanced anti-interference technology and support for camera tracking, the Table Mic for Meeting is an ideal solution for modern conference rooms.


    Product Highlights


    • PoE power supply with backup power;

    • TCP/IP network collaboration management;

    • Variable microphone directivity;

    • Conference room management;


    Product features


    • This Table Mic for Meeting uses fully digital conferencing technology and conforms to the IEC60914 international standard.

    • Exquisite and minimalist design highlights a modern atmosphere with ergonomic comfort, making the Wired Conference System stylish and reliable.

    • Special electret condenser dual-core design ensures clear, bright audio quality with high sensitivity.

    • Unique variable directionality technology allows users to adjust the Table Mic for Meeting to different acoustic environments, locations, meeting styles, or speaker needs. Supported polar patterns include Omni-Directional, Cardioid, Super Cardioid, Wide Cardioid, and Figure-of-Eight.

    • Full digital audio processing with a built-in high-performance CPU provides faster processing and superior sound quality within the Wired Conference System.

    • Ring hand-in-hand connection technology ensures reliability—failure or replacement of one unit does not affect the overall Wired Conference System.

    • Supports hot-plugging; the Table Mic for Meeting can be added or removed at any time without shutting down the system.

    • Chairman unit has priority control over meeting order and is not restricted by connection position.

    • In application mode, the chairman can approve delegates to activate microphones; in conference mode, the chairman can close all microphones while allowing queued delegate units to activate automatically.

    • Delegate units can be set as VIP, free from maximum microphone limitations, ensuring flexibility within the Wired Conference System.

    • Compatible with camera tracking host for automatic tracking, supporting preset panoramic views and integration with control systems.

    • Provides four speaking modes: Normal, FIFO, Free, and Apply.

    • Two-color LED indicator: red for speaking, green for application status.

    • Check-in function managed by the host computer for attendance tracking.

    • Each Table Mic for Meeting comes with a 2m Cat6 RJ45 shielded cable.

    • Built-in anti-interference capsule prevents mobile phone, Bluetooth, RF, and WiFi disruptions.

    • Independent gain control can be adjusted directly on the Table Mic for Meeting or via software, making the Wired Conference System adaptable to speakers with different voice levels.

    • Ø3.5mm stereo earphone jack for private monitoring.

    • Each conference unit has a unique serial number, with manual ID assignment supported by the Wired Conference System.

    • Customizable digital and analog backup functions ensure stable and reliable operation.


    Technical Parameters


    Power Supply:DC24V (host power supply)
    Connection:Network cable
    Power Consumption:2W
    Polar Patterns:Omnidirectional, pancentric, cardioid, hypercardioid, figure-of-eight
    Type:Condenser Microphone
    Distortion:<1%
    Frequency Response: 40Hz-20KHz
    Sensitivity-32dBV
    Dimension:138*99*260mm
    Weight:930g


    DN20C-S/DN20D-S
