Overview

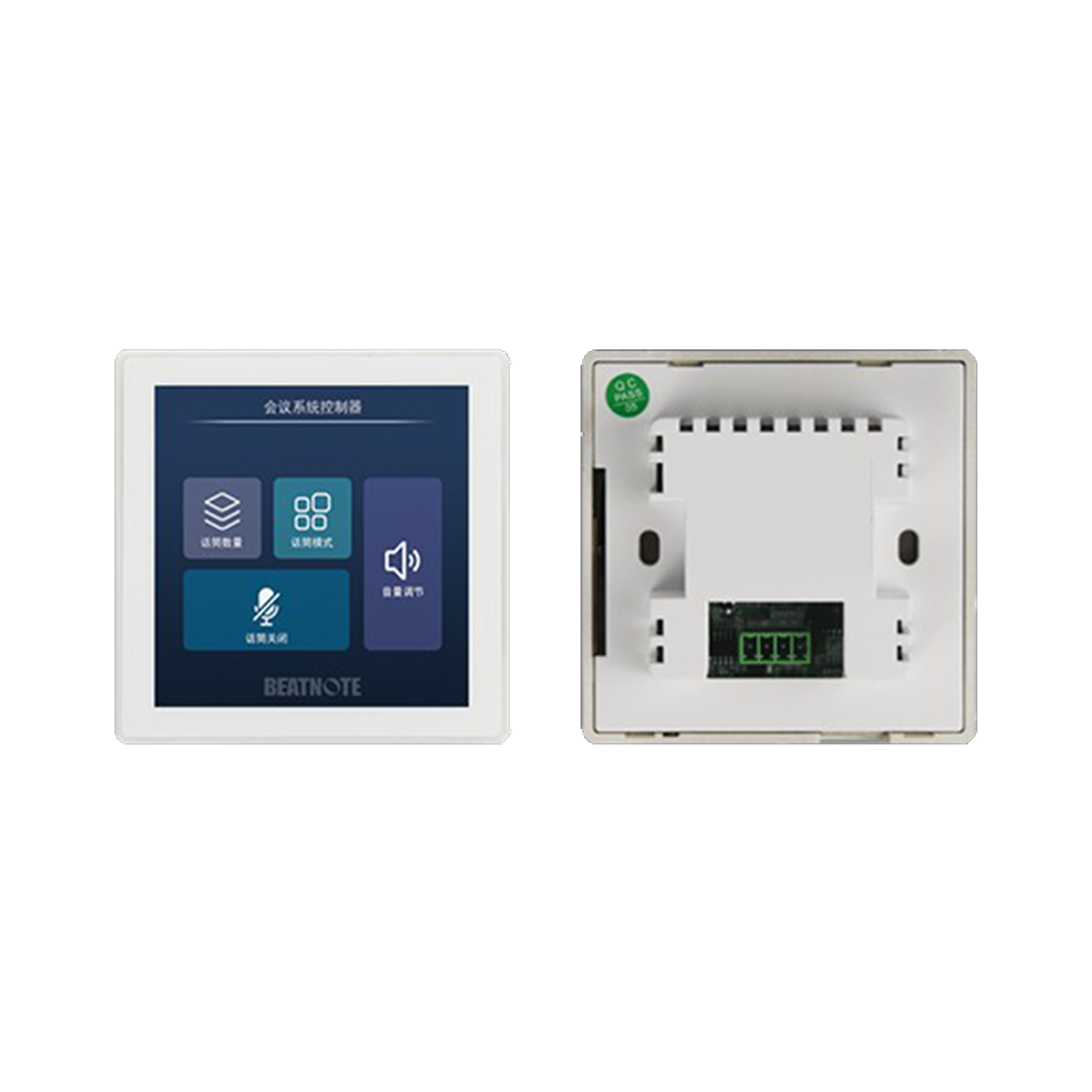

The QK-20M wall mounted control panel is designed specifically for seamless integration with conference systems, offering engineers a simplified installation experience. Utilizing a standard 86-box enclosure and featuring a 4-inch resistive touch screen, this wall mounted touch panel maintains the same installation method as conventional wall switches, significantly reducing installation complexity and time.
Product features
Easy Installation
Compatible with standard 86 mounting boxes
Installation process identical to ordinary wall switches
Connects via standard network cable to AoIP conference system host
Comprehensive Control Functions
Microphone number management
Microphone mode selection
Volume adjustment controls
Microphone mute function
Network Connectivity
RS-485 network port connection
Standard network cable compatibility
Stable and reliable communication protocol
Technical Advantages:
Standardized Design: Eliminates special mounting requirements
Intuitive Operation: Responsive touch screen interface
System Integration: Perfect compatibility with AoIP conference systems
Engineering Efficiency: Reduces installation time and labor costs
Application Scenarios:
Ideal for various meeting environments including:
Conference rooms
Boardrooms
Training rooms
Lecture halls
Technical Parameters
| Core Processor: | High-speed FPGA+Cortex-M3 Core |
| Resolution: | 320*240 |
| Color: | 64K Colors, 16-bit RGB |
| Communication method: | RS485 |
| Touch: | Resistive type |
| Power consumption: | With backlight on: 170mA@5A, without backlight on: 71mA@5V |
| Dimension: | 3.5 inch |
| Weight: | 90g |
