Overview

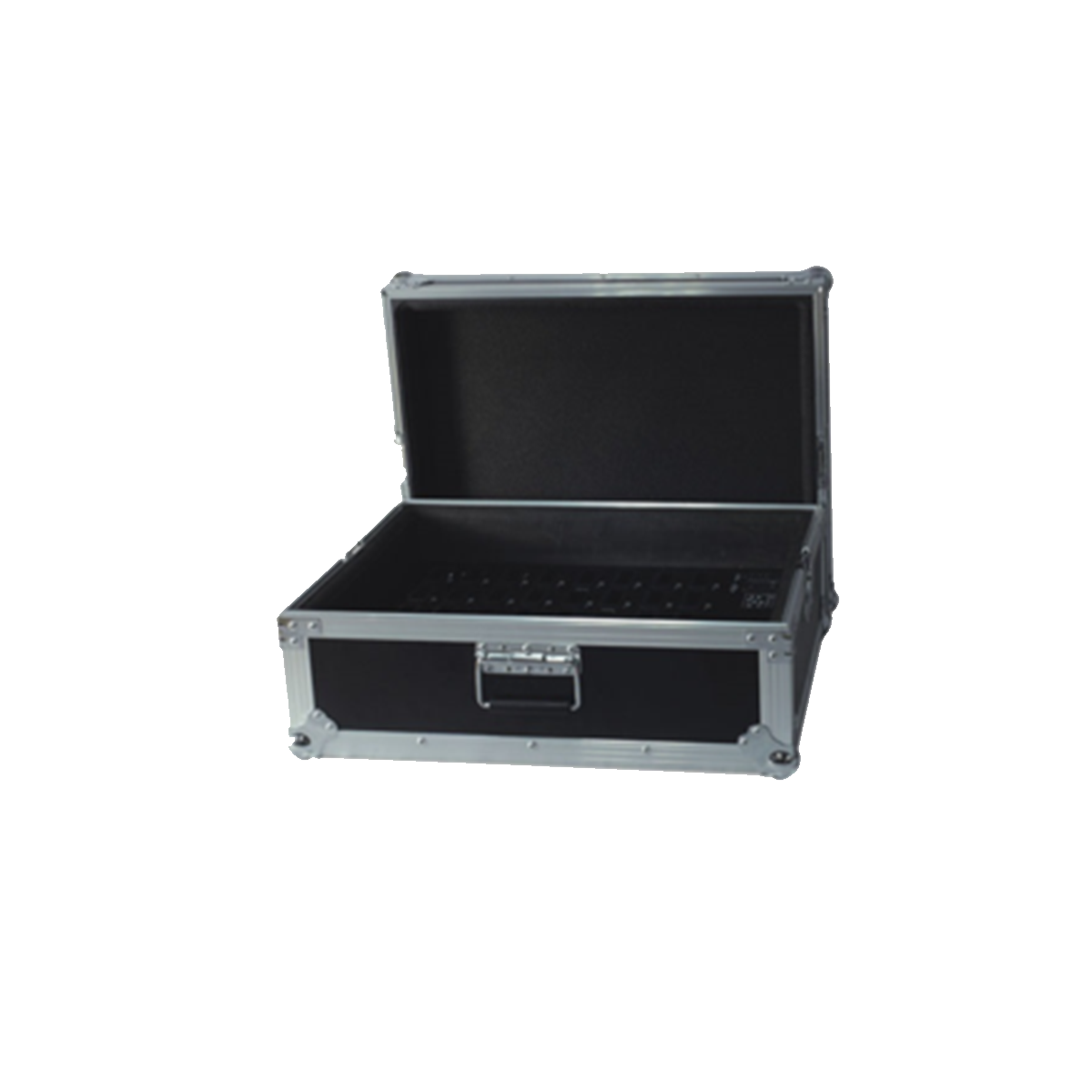

The ISI85CB is a centralized charging and storage solution designed for conference infrared receivers. It efficiently charges up to 50 receivers simultaneously and provides organized storage, ensuring a complete set of equipment is always ready for use.
Product features
Key Features & Benefits
• Global Power Compatibility: Equipped with a universal power supply (100-240V AC), allowing for safe use anywhere in the world.
• Rapid Charging: Fully charges a bank of receivers in under 2 hours, minimizing downtime between conference sessions.
• High Capacity: Can charge and store 50 receivers in a single, organized unit.
• Individual Charging Status: Features an LED indicator for each receiver bay, providing clear visual confirmation of the charging status for every unit.
• Integrated Storage: Combines the functionality of a high-capacity charger with a secure storage case, protecting equipment from loss or damage.
Control Panel & Indicators
• Individual Charging LEDs: Each of the 50 receiver slots has its own indicator light to show the charging status of the receiver placed in it.
Interconnections
• Cascaded Power Input & Output Ports: Allows multiple charging boxes to be connected (daisy-chained) from a single power outlet.
• Standard Power Sockets: Features male and female power sockets for easy cascading.
Technical Parameters
Electrical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | AC 100V - 240V, 50/60Hz |
| Maximum Power (Charging) | 150W |
| Static Power (Idle) | 17W (when not actively charging) |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (H x W x D) | 600 x 380 x 230 mm |
| Weight | 5 kg |
| Color | Black |
Q&A
Q: Do you offer OEM&ODM service?
A: Yes, we do.
Q: What’s the quality standard of your products?
A: Our products have approved CCC, ISO9001, CE, RoHS certification.
Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments, Banks, Churches, Highways, Airports, Parliaments, Education institutes, Hotels, Private corporate conference halls, and so on.
