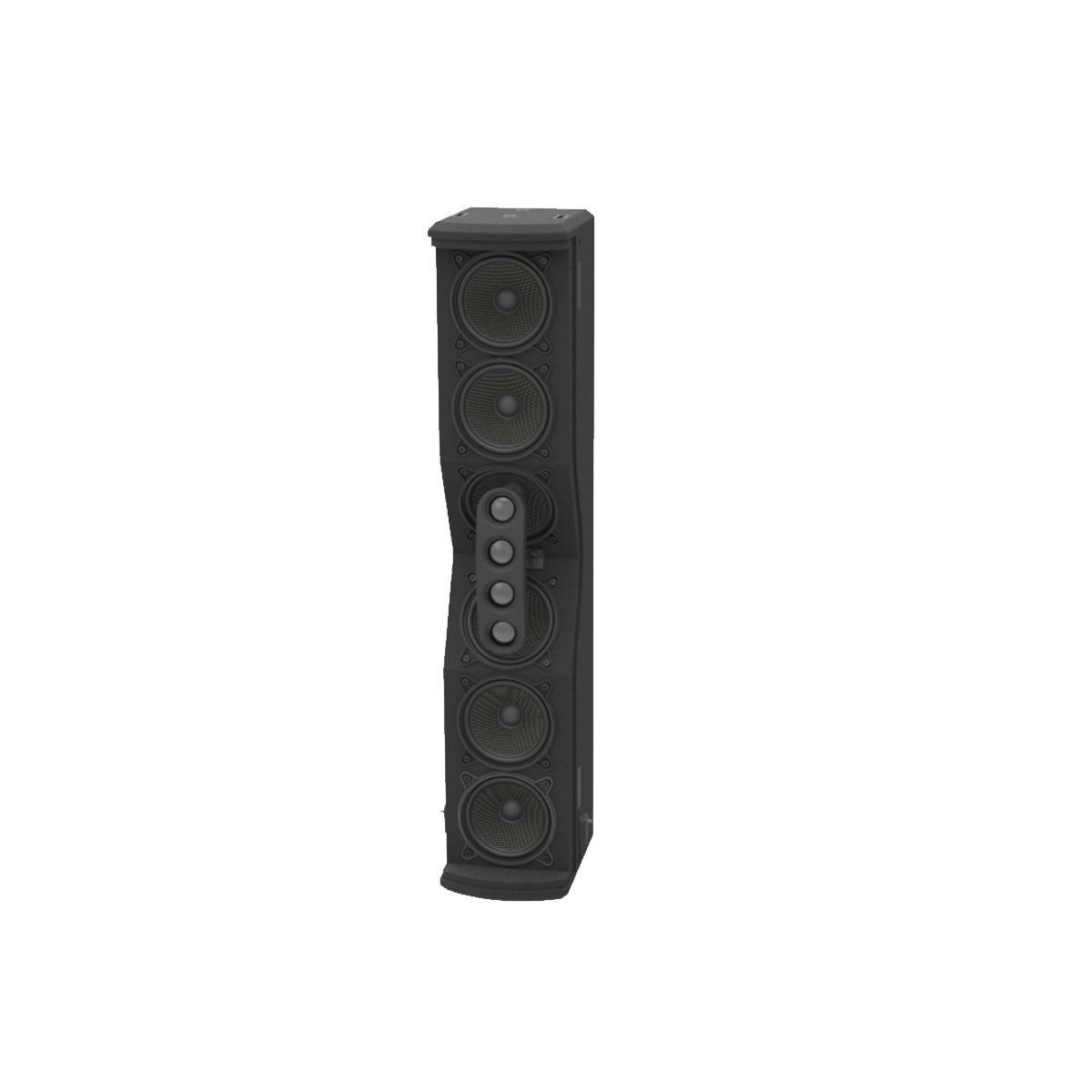

Multi Beam Synthesis Technology Passive Speaker

    LC4164B

    Overview


    Traditional column speaker systems face an inherent limitation in sound beam formation: creating the main beam inevitably produces side beams. These side beams introduce acoustic interference, leading to comb filtering, uneven sound coverage, and increased risk of acoustic feedback (howling). Moreover, they reduce the efficiency of the main beam, causing the column’s surface wave to prematurely transform into a spherical wave, which sharply shortens projection distance. The unwanted energy radiated by side beams also generates multiple reflections from ceilings, floors, and walls, further reducing speech clarity.

    To address this, many international manufacturers attempt to suppress side beams using physical modifications, driver customization, or DSP-based elimination. However, these methods vary in effectiveness and cannot completely resolve the issue.

    MBS (Multi-Beam Synthesis) technology takes a fundamentally different approach. Based on acoustic theory, it employs specially designed waveguides and precision driver processing to synthesize side beams—once considered redundant and harmful—into the main beam. This eliminates the negative impact of side beams while strengthening the main beam’s energy and efficiency, resulting in a clearer, more uniform sound field and significantly extended radiation distance.



    Product features


    1. Full-frequency linear sound column, all imported Italian units, tweeters are processed through special materials, reduce the harmful interference between high frequencies, enhance the high-frequency radiation distance, six 4-inch bass and midrange units arranged in a linear structure, through the MBS multi-beam synthesis technology to the form of column surface wave radiation sound waves, sound field coverage more uniform, the human voice clear, clean, sensitivity, radiation distance.

    2. It is equipped with multi-functional installation bracket, flexible installation, wall mounting, hanging, multiple stacking, support installation, convenient and flexible, especially suitable for multi-functional hall, conference room, religious places and other occasions.

    3. High resistance compatible, optional TF-60 matching audio transformer to set into a high resistance fixed-voltage speakers, can be used with fixed-voltage amplifier.


    Technical parameters


    Frequency Response

     90Hz20KHz

    Number of units

     Woofers 4 "x6

    Tweeter neodymium magnet

     1 "x4

    Standard impedance

     8Ω

    Long time withstand power

     200W

    Peak Power

     400W

    Sensitivity

     95dB(1W/1m)

    Maximum sound pressure level

     121dB

    Radiation angle

     120H×10V degree

    Speaker size

     680x135x175mmH×W×D

    Input Connector

     Phoenix Head 4J

    Weight

     8.7kg


    LC4164B
